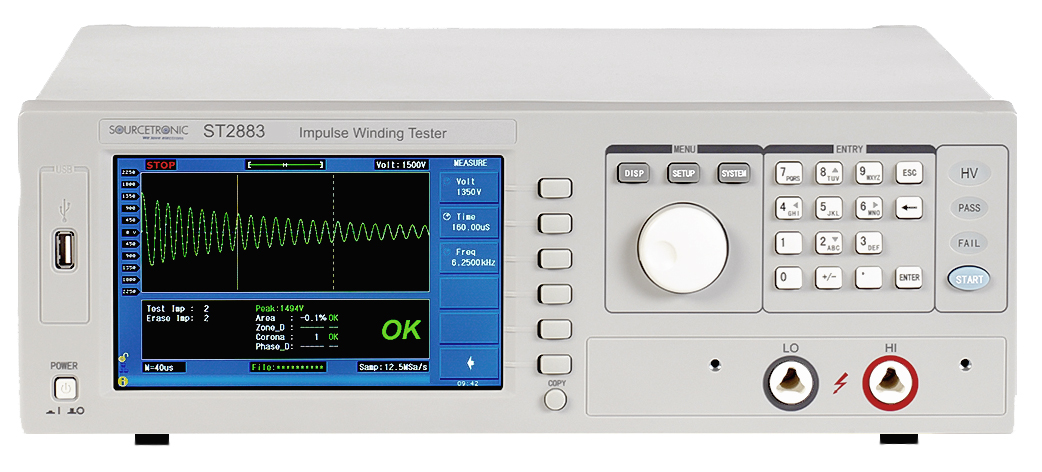

Surge Tester ST2883-10
Product number:
62382
EAN:
4260409229082
£3,455.83*
Goods expected soon
Details
Fachberatung unter
+49 421 277 9999
+49 421 277 9999
Print
Product information "Surge Tester ST2883-10"
Highlights
- LAN / LXI 10kV Surge tester
- Fast measurement speed of 6 meas/sec.
- 4 waveform comparison methods
- Area, Differential Area, Corona Discharge, Differential Phase
- 65k color 7" TFT wide display screen
- Pass/Fail comparison output

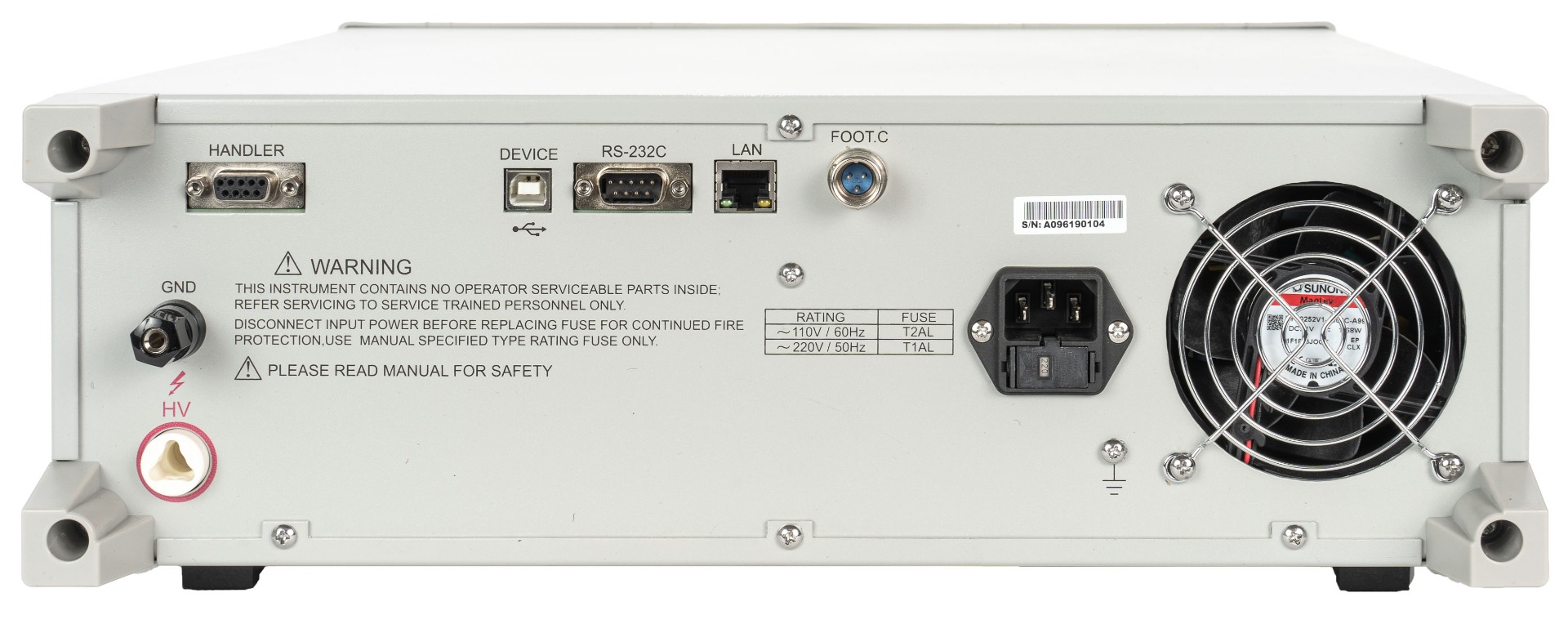

- Interfaces: Handler, RS232, USB, LAN
- Waveform can be stored on USB-Sticks (500 Groups)
- Foot switch
Features
- Output Impulse Voltage 100V – 10000V, 20V resolution
- Accuracy: 5%
- Voltage Control Modes Constant and Normal
- Impulse Energy maximum 500 milli-Joules @ 1kOhm
- Inductance Range > 20 µH
- 200 MS/s sampling rate
- 3 phase
- Input Impedance 5MOhm
- Sampling Resolution 8 bits
- Sampling Length 960 Bytes
- Direct display of comparison results
- Average Rate Programmable 1 – 99
- Internal Waveform Data Memory 20 Groups
General
- Power: 115 / 230 V ± 10 %, 50/60 Hz
- Weight 15 kg
- Dimensions 400x132x390 mm
- Operating Environment 0°C - 40°C, ≤ 75% RH
What's in the box

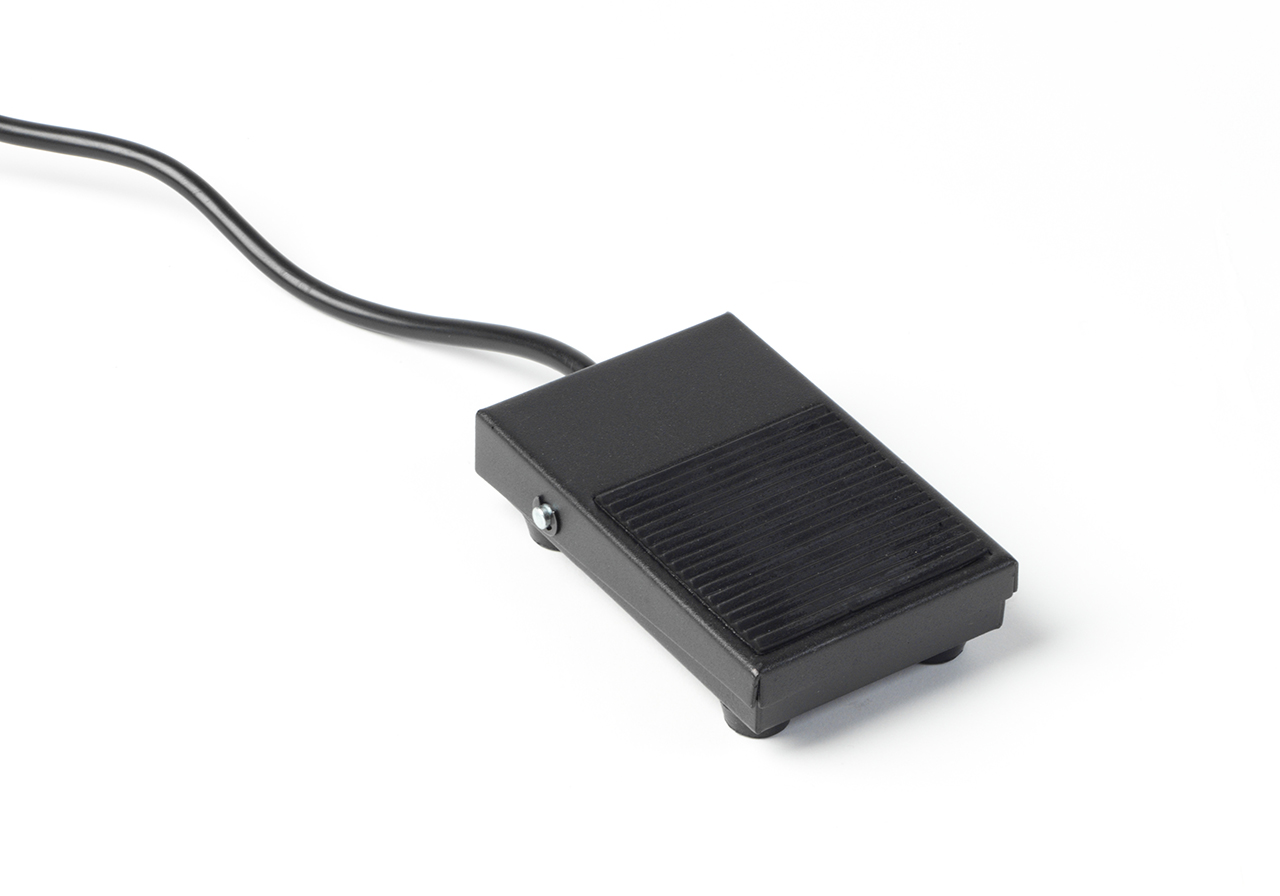

- ST2881-001 Footswitch
- ST2883-01 test clip leads
- Connection lead
- Manual
Options
- ST10001 GPIB Interface Board
- ST12021 Control Software
