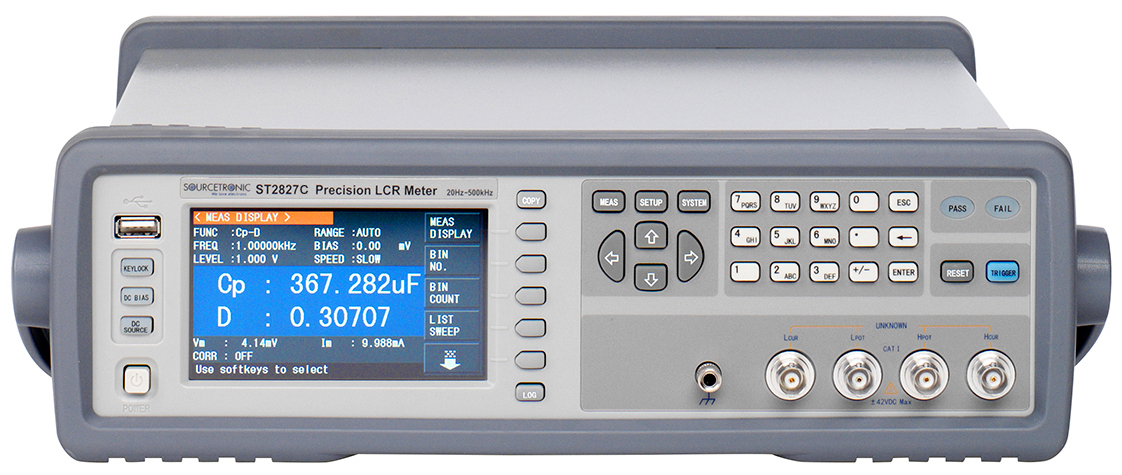

Precision LCR Meter ST2827C

Name: Precision LCR Meter ST2827C
Brand: Sourcetronic
SKU: 63282
Price: 4361.34 GBP
Availability: InStock

Product number: 63282

EAN: 4260254477119

£4,361.34*

Prices excl. VAT plus shipping costs

Only 1 left in stock

Quantity

Frequently bought together

Total price:

excl. VAT

Current product: Precision LCR Meter ST2827C - £4,361.34
ST®Meter 4.0 £238.27
Calibration LCR Meter £106.35

Details

Fachberatung unter
+49 421 277 9999

Description

Product information "Precision LCR Meter ST2827C"

Highlights

Test frequency: 20 Hz - 1 MHz
Accuracy: 0.05%
Resolution: 10 mHz
800x480 LCD-Display
Resistance selectable: 30Ω / 50Ω / 100Ω
Internal DC Bias source and list-sweep function
LAN-LXI, RS232C, Handler, USB, GPIB (optional)

Specifications

Test Parameters: |Z|, |Y|, C, L, X, B, R, G, D, Q, θ(DEG), θ(RAD), DCR, Δ
Transformer Test Parameters: DCR1, DCR2, M, N, 1/N, Phase, La, Lb, Lk, C, balance test

AC voltage Test Level:

10mV–2Vrms
Resolution: 100µV, 3-digit input
Accuracy:

ALC ON: 10% x Voltage + 2mV
ALC OFF: 6% x Voltage + 2mV

AC current Test Level:

100µA–20mA
Resolution: 1µA, 3-digit input
Accuracy:

ALC ON: 10% x Strom + 20 µA
ALC OFF: 6% x Strom + 20 µA

Measurement time (≥ 10kHz): Fast: 13ms / Medium: 67ms / Slow 187ms
10-point list sweep function
Testsignal funktion
Internal DC BIAS source:

Voltage/current range: 0V - ±5V / 0mA - ±50mA
Resolution: 0.5mV / 5µA
Accuracy: 1% x Spannung + 5mV

Equivalent circuit: serial and parallel
Range mode: Auto and Hold
Trigger Mode: internal, external, manual and BUS
Average times: 1-255
Comparator: 0-bin and counter
Calibration function: open, short, load
Power supply: 99 - 121V, 198V-242V / 47/63 Hz
Temperature / humidity: 0°C - 40°C, ≤ 90% RH
Dimension (W/H/D): 369/108/408 mm
Weight: 5 kg
CE-conformity: EN 50 191

Measurement range

\|Z\|, R, X, DCR:	0.00001Ω - 99.9999MΩ
\|Y\|, G, B:	0.00001nS - 99.9999S
L:	0.00001µ - 9.9999kH
C:	0.00001pF - 9.99999F
Q:	0.00001 - 9.99999
D:	0.00001 - 9.99999
θ:	-179.999° - 179.999°
θ(RAD):	-3.14159° - 3.14159°
Δ%:	-999.999° - 999.999°

What's in the box

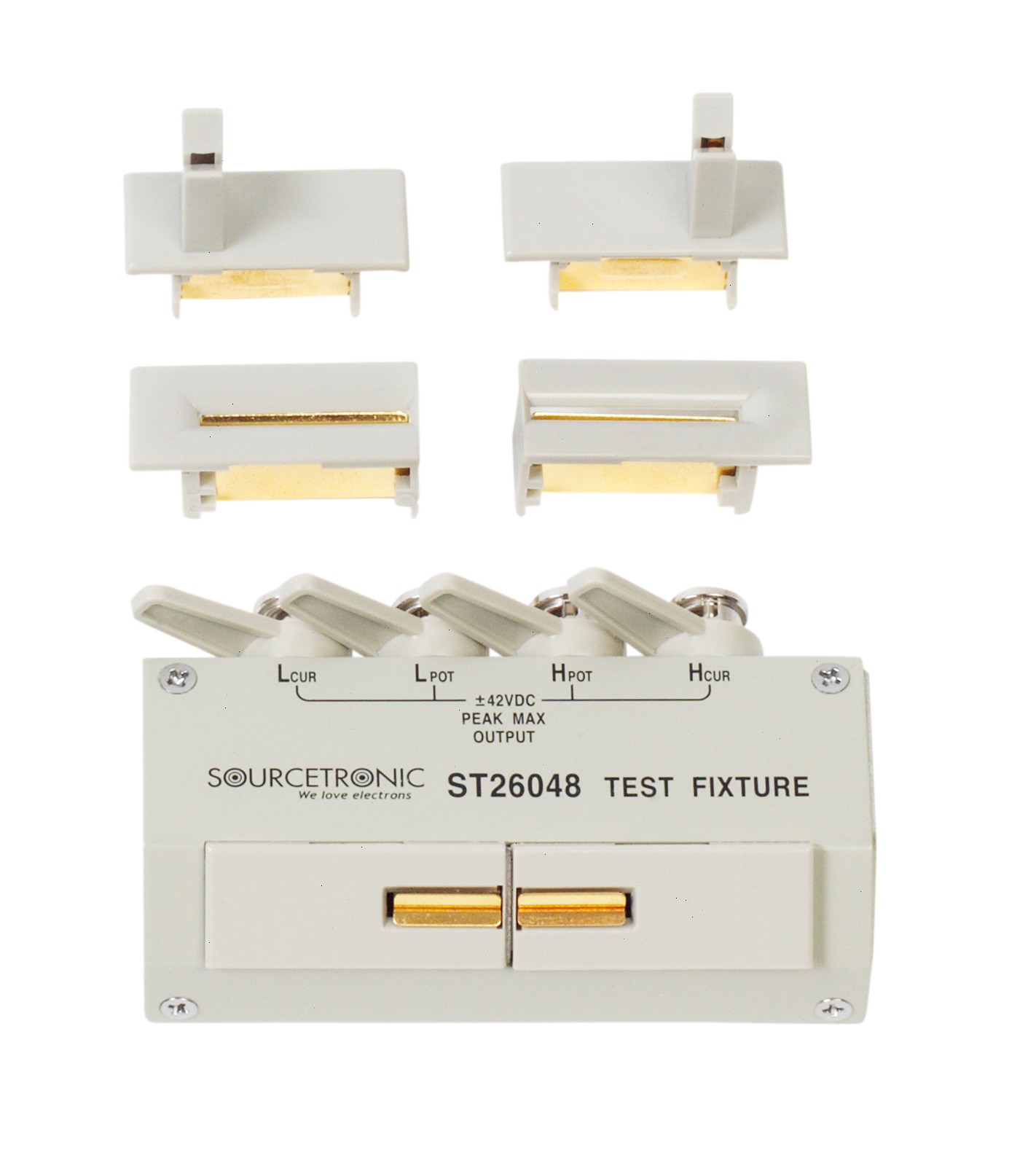

ST26048 4 terminal test fixture

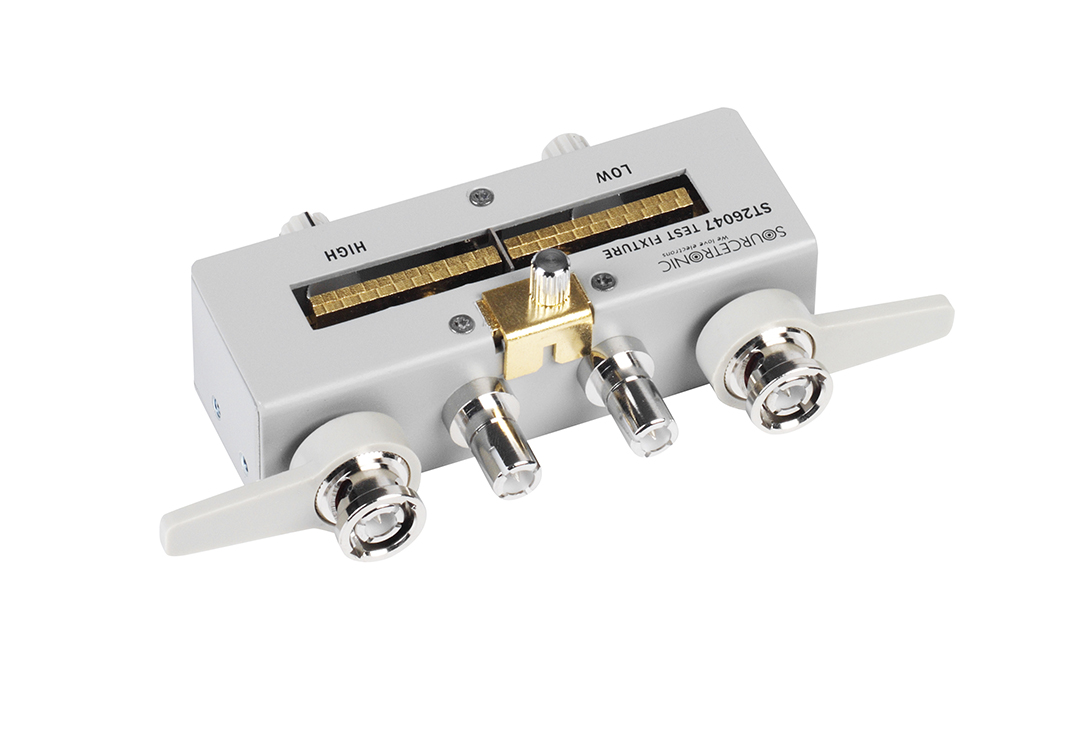

ST26047 4 terminal test fixture

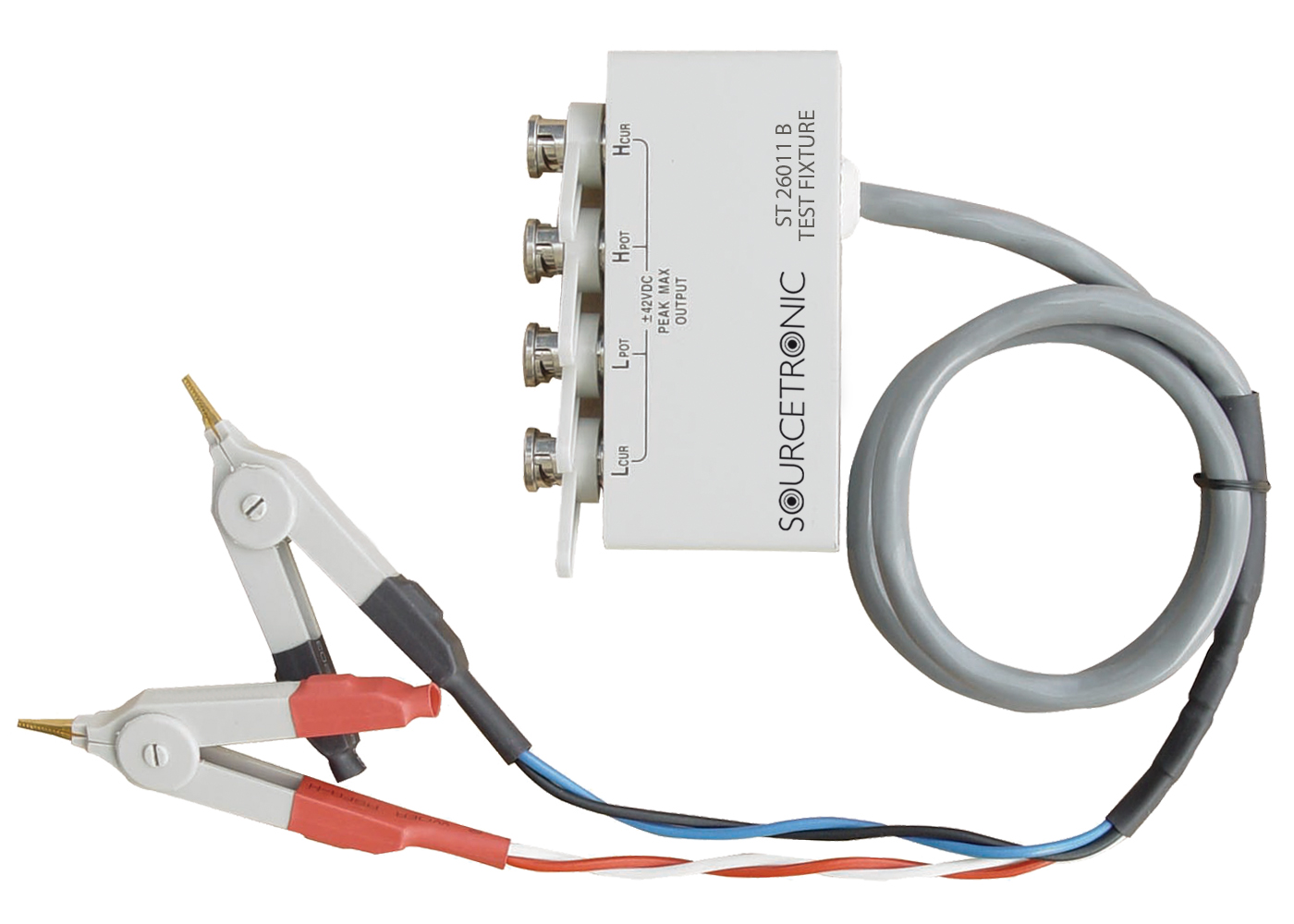

ST26011B 4 terminal Kelvin test clip leads

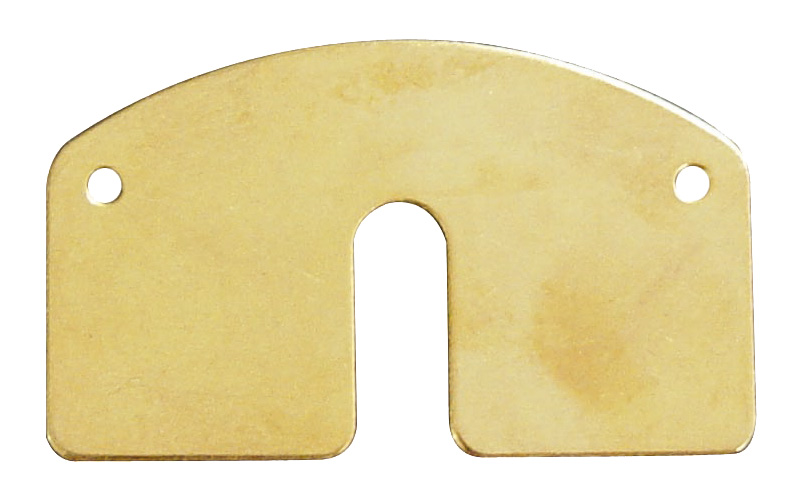

ST26010 Gilded shorting plate

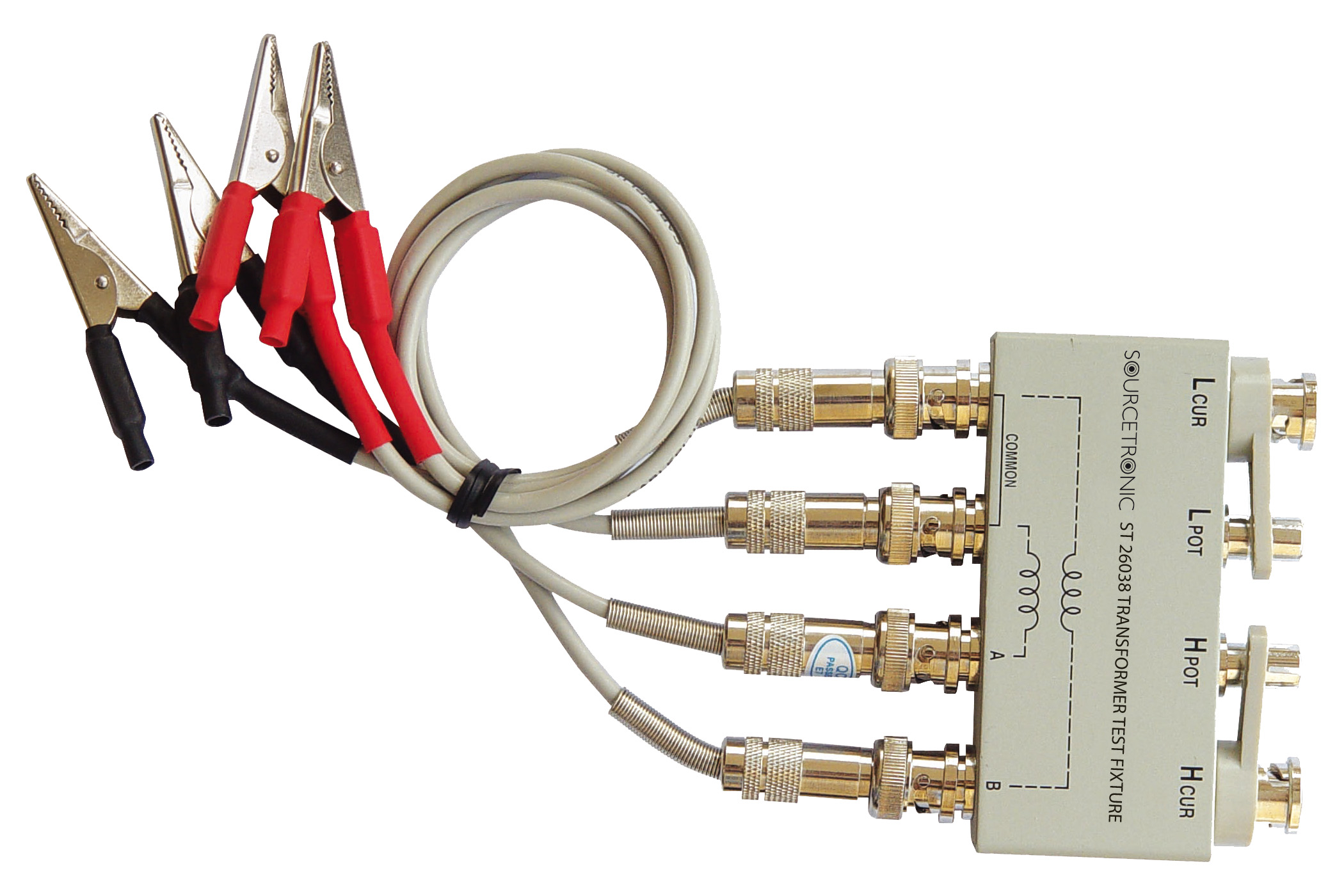

ST26038 Transformer test fixture
Operation manual
Power cable

Downloads

EN - ST2827 User Manual (1.91 MB)
DE - ST2827 Bedienungsanleitung (4.36 MB)

Software

ST®Meter 4.0

Technical data

Specifications
Display			800xRGBx480 7-inch TFT LCD display
Frequency of test signal	ST2827A		20Hz - 300kHz
	ST2827B		20Hz - 500kHz
	ST2827C		20Hz - 1MHz
	Minimum resolution		10mHz, 4-digit frequency input
	Accuracy		0.01%
AC Level	Voltage range of test signal		10mV - 2Vrms
	Minimum resolution of voltage		100µV, 3-digit input
	Accuracy	ALC ON	10% x set voltage + 2mV
		ALC OFF	6% x set voltage + 2mV
	Current range of test signal		100µA - 20mA
	Minimum resolution of current		1µA, 3-digit input
	Accuracy	ALC ON	10% x set current + 20µA
		ALC OFF	6% x set current + 20µA
DC bias voltage source	Voltage/Current range		0V - ±5V / 0mA - ±50mA
	Resolution		0.5mV / 5µA
	Voltage accuracy		1% x set voltage + 5mV
	ISO ON		Be used for the bias test of inductance and transformer
AC Source impedance	ISO ON		100Ω
	ISO OFF		30Ω, 50Ω 100Ω selectable
DCR Source impedance			30Ω, 50Ω, 100Ω selectable
Test parameters of LCR			\|Z\|, \|Y\|, C, L, X, B, R, G, D, Q, θ, DCR, Vdc-Idc
Parameter display of test page			One set of main/sub parameter, 10-point list sweep
Test parameters of transformer			DCR1 (primary, 2-terminal), DCR2 (secondary, 2-terminal), M (mutual inductance), N, 1/N, Phase, La/Lb (primary, secondary inductance), Lk (leakage inductance), C (primary, secondary capacitance), balance test
Basic accuracy	LCR test parameter		0.05%
	N		0.1%
	Calibration conditions		Warm-up time ≥ 30 seconds; Environment temperature: 23±5°C; Signal voltage: 0.3Vrms-1Vrms Zeroing: After OPEN or SHORT; Length of test cable: 0m
Measurement time (≥10 kHz)			Fast: 13 ms / time Medium: 67 ms / time Slow: 187 ms / time plus the refresh time of display character
Display range of LCR parameters		\|Z\|, R, X, DCR	0.00001Ω - 99.9999MΩ
		\|Y\|,G, B	0.00001µs - 99.9999s
		C	0.00001pF - 9.99999F
		L	0.00001µH - 99.9999kH
		D	0.00001 - 99999.9
		Q	0.00001 - 9.99999
		θ(DEG)	-179.999° - 179.999°
		θ(RAD)	-3.14159 - 3.14159
		Δ%	-999.999% - 999.999%
Equivalent circuit			Serial, Parallel
Range mode			Auto, Hold
Trigger mode			Internal, Manual, External, Bus
Average times			1-255
Calibration function			Open and short calibration with full frequency or dot frequency, Load calibration with standard test component
Math operation			Direct reading, ΔABS, Δ%
Delay time setup			0-999, minimum resolution: 100µs
Comparator			10-bin sorting, BIN1-BIN9, NG, AUX
			Bin counter
			PASS/FAIL on f ront panel , LED indication
List sweep			• 10 points list sweep • Frequency, AC voltage/current, internal/external bias voltage/ current can be swept. • Each sweep point can be sorted separately.
Internal nonvolatile memory			100 sets of LCRZ setting files 201 times test results
External USB memory			• GIF images • LCRZ setting files • Test data can be stored via USB memory directly.

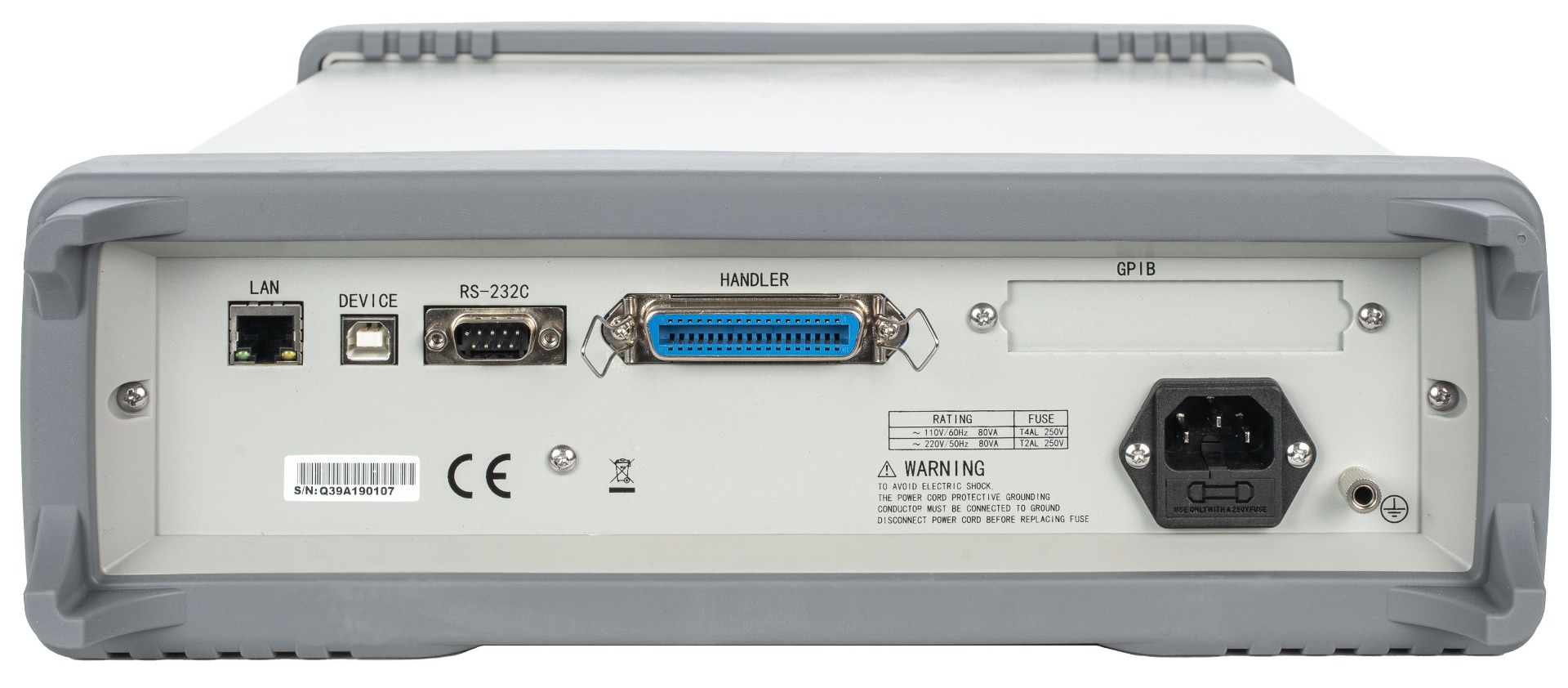

Interface	I/O interface		HANDLER on rear panel
	SCI		USB, RS232C
	PCI		GPIB (optional)
	NI		LAN-LXI
	Memory interface		USB HOST(front panel)
	Bias current source control interface DCI		External DC bias current source can be controlled by using DCI interface. The maximum bias current can reach 120A.
			Option: Only choose either DCI or GPIB
General Specifications
Operating temperature and humidity			0°C - 40°C, ≤ 90%RH
Power supply	Voltage		99V - 121V， 198V - 242V AC
	Frequency			47Hz - 63Hz
Consumption			Max. 80 VA
Dimension(WxHxD)			280 mm x 88 mm x 370 mm (without sheath) 369 mm x 108 mm x 408 mm (with sheath)
Weight			Approx.5 kg
