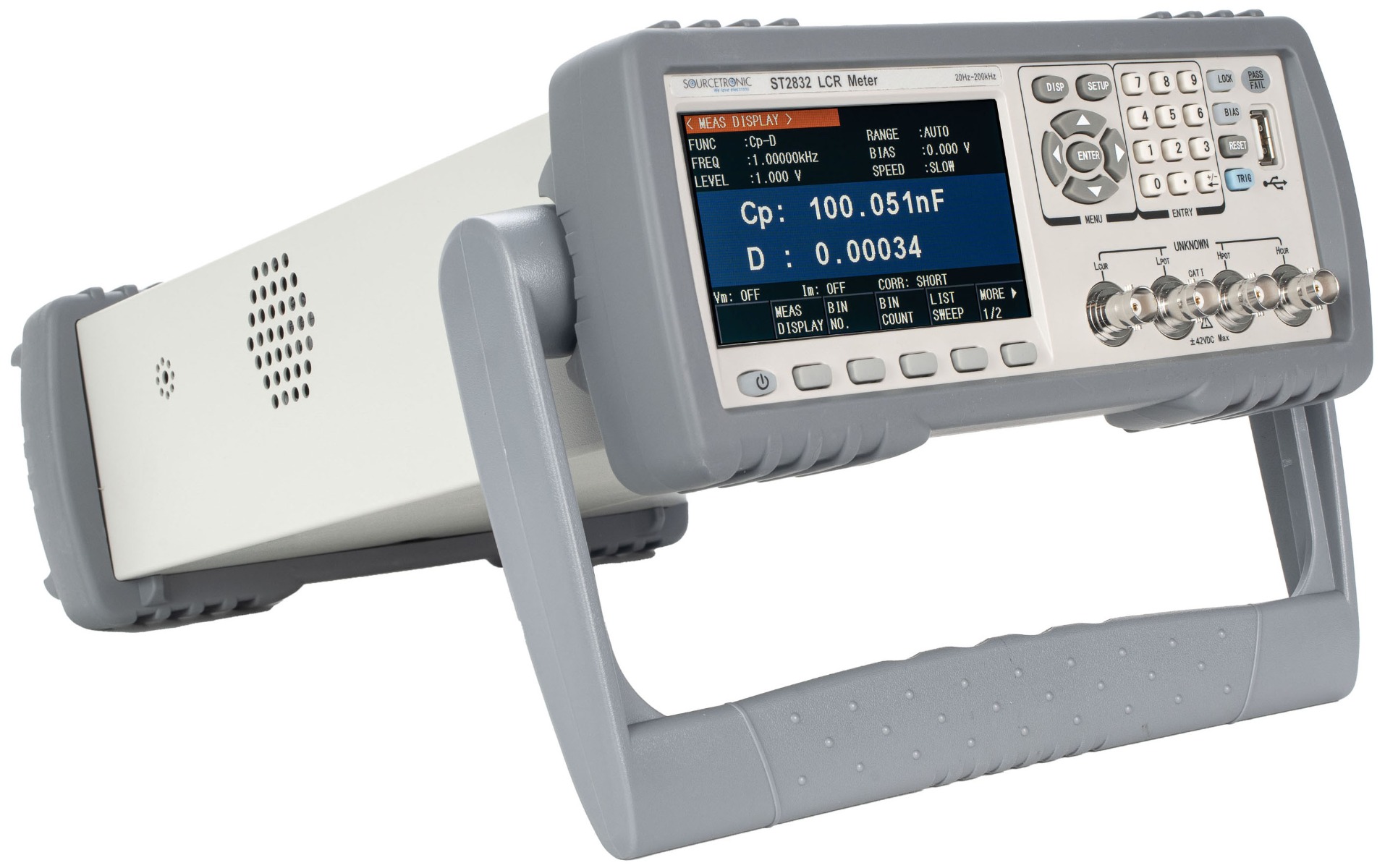

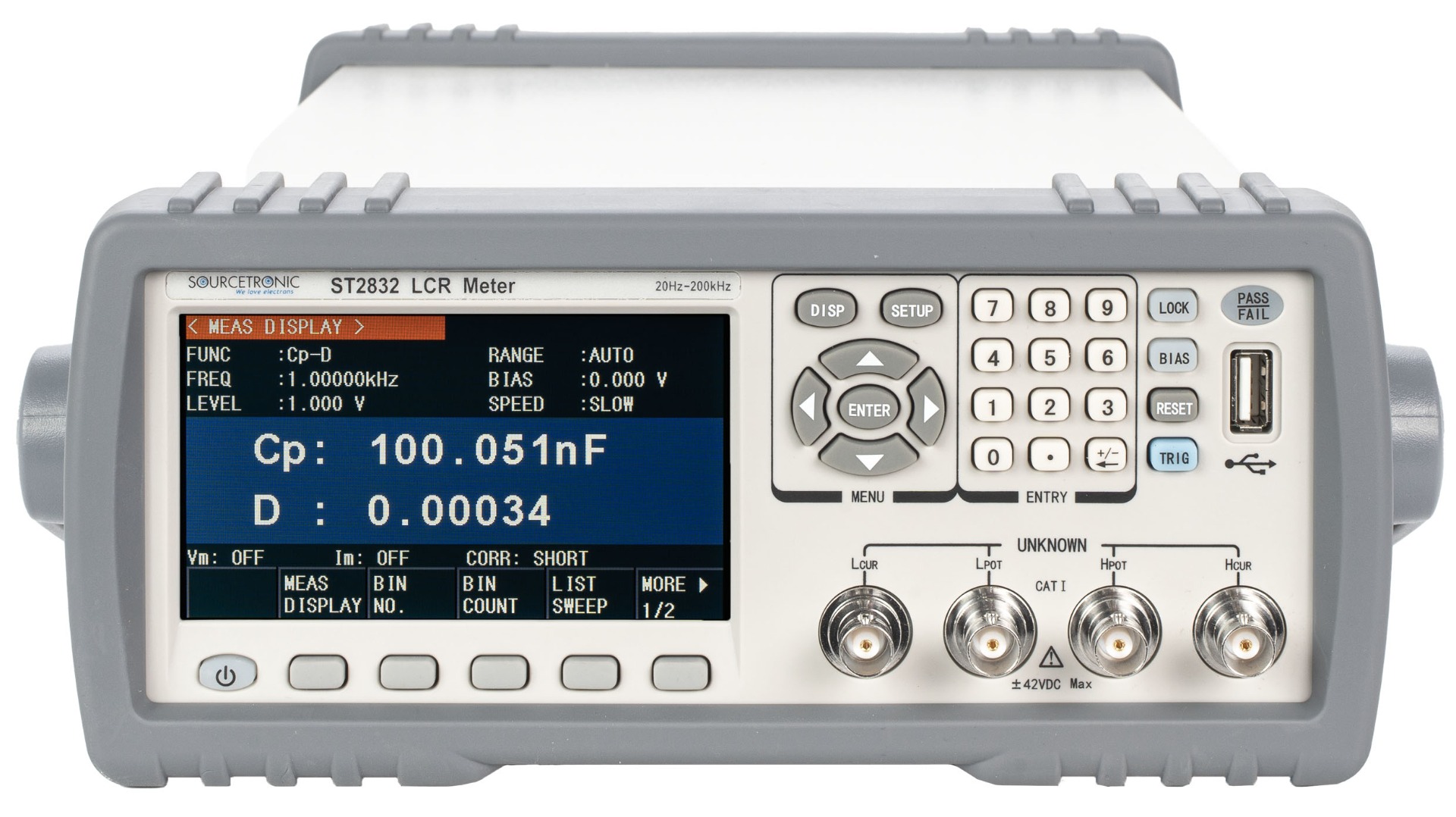

Compact LCR Meter ST2832 (Rental device)

Product number: 62083
EAN: 4260409225374

£223.70*

Prices excl. VAT plus shipping costs

Goods expected soon
Quantity

Details

Fachberatung unter
+49 421 277 9999
Print
Description
Product information "Compact LCR Meter ST2832 (Rental device)"

This article is also in our shop available

Highlights

  • Frequencies: 20Hz - 200kHz
  • Basic Accuracy: 0.05%
  • Test parameter: |Z|, |Y|, C, L, D, Q, θ(DEG), θ(RAD), Δ%, DCR
  • 4.3" TFT LCD-display

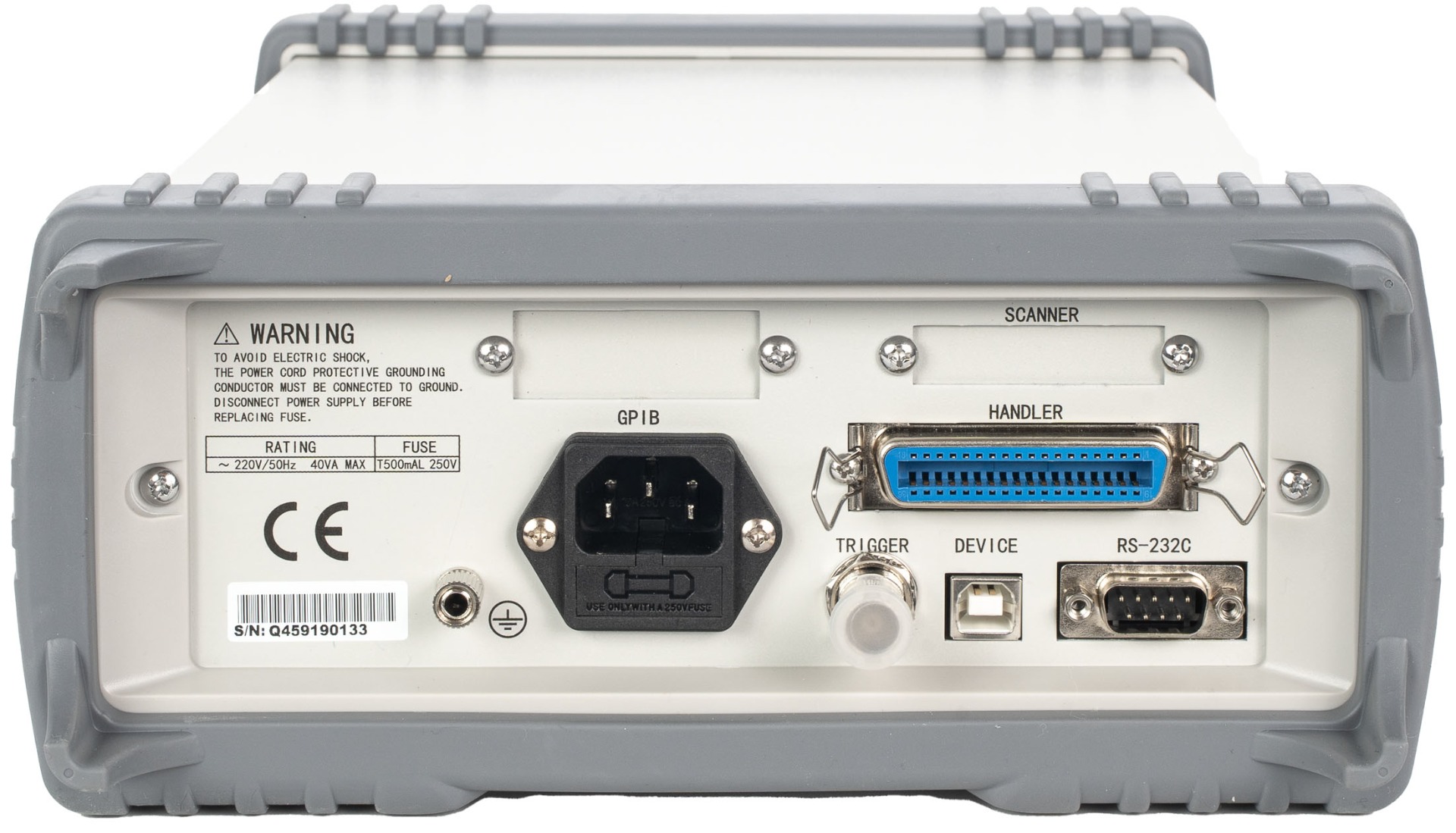

  • Interface: RS232, USB, HANDLER, GPIB (optional)
  • Measuring time: 13ms
  • Auto-Power-On Function
  • Comparator function

Specification

  • 4.3"TFT LCD Display
  • Soft power switch
  • Max. 200kHz test frequency
  • 6 digit reading resolution
  • 10mVrms-2.0Vrms programmable test level
  • Internal 0 - ± 5V/50mA bias source
  • DCR, 50mV-2V programmable test level, resolution 10μΩ
  • DCR polarity configuration function, particularly for inductance test
  • Highest test speed 13ms/time
  • Selectable 30Ω/100Ω signal source impedance
  • V/I monitor and auto level adjustment function
  • Built-in comparator, 10 bins sorting and count function
  • File storage and program update through U disk
  • RS232, USB, HANDLER, GPIB interface (optional)

Measurement display ranges

|Z|, R, X, DCR: 0.00001Ω - 99.9999MΩ
|Y|, G, B: 0.00001nS - 99.9999S
L: 0.00001µ - 9.9999kH
C: 0.00001pF - 9.99999F
Q: 0.0001 - 99999
D: 0.00001 - 9.99999
θ(DEG): -179.999° - 179.999°
θ(RAD): -3.14159° - 3.14159°
Δ%: -999.999° - 999.999°

What's in the box

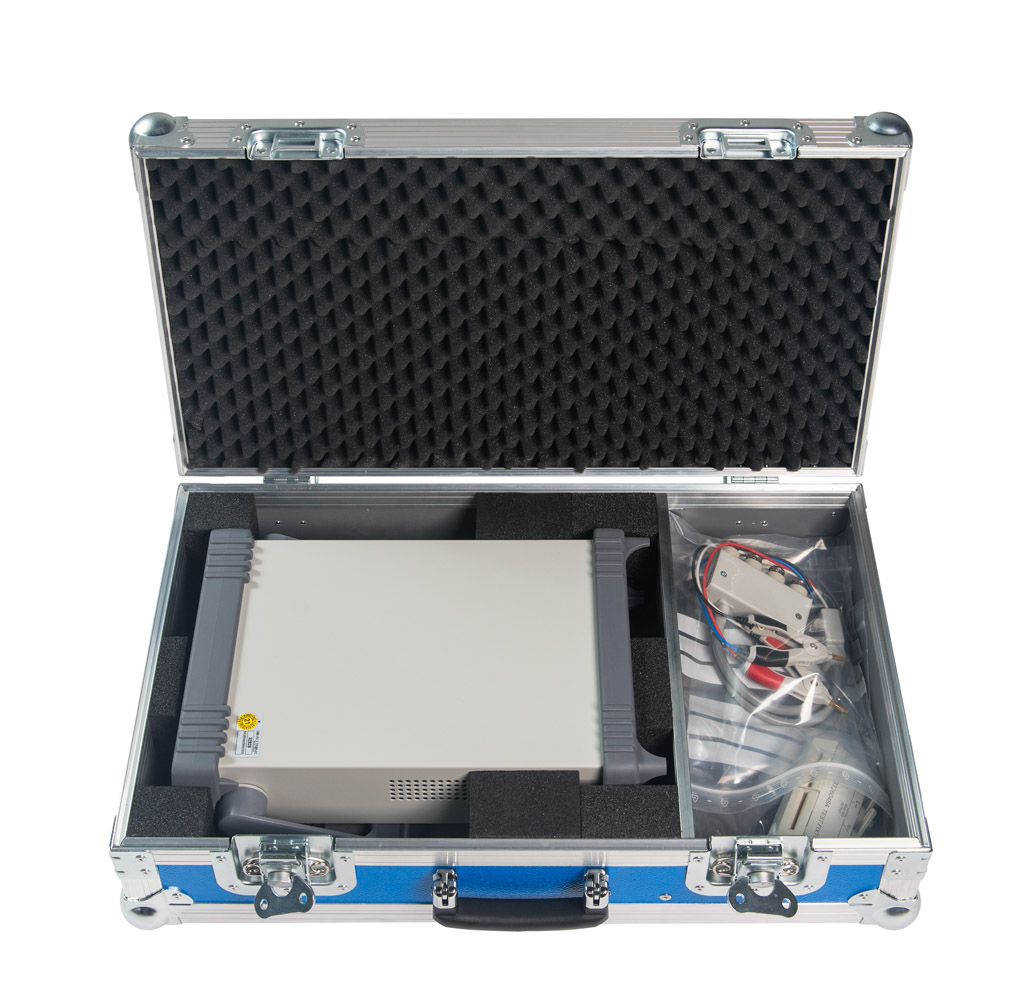

  • ST26010 Gilded shorting plate
  • ST26011CS 4-terminal Kelvin clip test leads (click picture)
  • ST26048A 4-terminal test fixture
  • Operation manual
  • Power cord
  • Calibration certificate
Technical data

Technical specification
Model ST2830 ST2831 ST2832
Basic measurement
accuracy		 LCRZ 0.05% 0.1% 0.05%
DCR 0.1%
Calibration condition Warm up time: ≥ 30 s ; Environment temperature: 23±5ºC
Signal voltage: 0.3Vrms - 1Vrms ; Correction: after OPEN, SHORT
Testing cable length: 0 m
Basic measurement
accuracy		 LCRZ 0.05% 0.1% 0.05%
DCR 0.1%
Calibration condition Warm up time: ≥ 30 s ; Environment temperature: 23±5ºC
Signal voltage: 0.3Vrms - 1Vrms ; Correction: after OPEN, SHORT
Testing cable length: 0 m
Test signal frequency 50Hz-100kHz
34 points
50Hz, 60Hz, 75Hz, 100Hz, 120Hz, 150Hz, 200Hz, 250Hz, 300Hz, 400Hz, 500Hz, 600Hz, 750Hz, 1kHz, 1.2kHz, 1.5kHz, 2kHz, 2.5kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7.5kHz, 10kHz, 12kHz, 15kHz, 20kHz, 25kHz, 30kHz, 40kHz, 50kHz, 60kHz, 75kHz, 100kHz		 50Hz-200kHz
37 points
50Hz, 60Hz, 75Hz, 100Hz, 120Hz, 150Hz, 200Hz, 250Hz, 300Hz, 400Hz, 500Hz, 600Hz, 750Hz, 1kHz, 1.2kHz, 1.5kHz, 2kHz, 2.5kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7.5kHz, 10kHz, 12kHz, 15kHz, 20kHz, 25kHz, 30kHz, 40kHz, 50kHz, 60kHz, 75kHz, 100kHz,120kHz, 150kHz, 200kHz		 20Hz-200kHz, 15025 points
Signal source output impedance Selectable 30Ω, 100Ω, ±1% @1kHz
AC test signal level Normal 10mV - 2Vrms
Resolution: 10mV,
Accuracy: 10% x setting voltage+2mV
100µA - 20mArms
Resolution: 0.1mA
Constant Level
(ALC ON)		 - - 20mV - 1Vrms
- - Resolution: 10mV
Accuracy: 10%
- - 200µA - 1.Arms
- - Resolution: 0.1mA
DCR test signal level 1V DC 1V DC 50mV - 2V DC
- - Resolution: 0.5mV
DC bias voltage source - - 0V - ±5V
- - Resolution: 0.5mV,
Accuracy: 1%
- - 0mA - ±50mA
- - Resolution: 0.5µA
Test parameters |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR
DCR display range 0.00001Ω - 999.999MΩ
LCR parameters display range |Z|, R, X 0.00001Ω — 99.9999MΩ
|Y|, G, B 0.00001μs — 99.9999s
C 0.00001pF — 9.99999F
L 0.00001μH — 99.9999kH
D 0.00001 — 9.99999
Q 0.00001 — 99999.9
θ(DEG) -179.999º — 179.999º
θ(RAD) -3.14159 — 3.14159
Δ% -999.999% — 999.999%
Display digits 6 5 6
Measurement time (≥10 kHz) Fast: 75 meas/sec (13ms)
Medium 11 meas/sec 90 ms)
Slow: 2.7meas/sec 370 ms)
Equivalent circuit Serial, Parallel
Range mode Auto, Hold
Trigger mode Internal, Manual, External, Bus
Averaging 1 - 255 individual measurements
Correction Open, Short, (known) Load
Math operation Direct reading, difference to set reference value as ΔABS, Δ%
Trigger delay time setting 0 - 60.000s, 1ms steps
Step delay time setting 0 - 60.000s, 1ms steps
List Sweep
  • 10 points list sweep
  • Frequency, AC voltage/current, internal/ external bias voltage/current can be swept
  • Each sweep point can be sorted separately.
Comparator function 10 bins, BIN1–BIN9, NG, AUX
Bin count function
PASS, FAIL front panel or scan fixture LED display
Built-in Storage Internal 40 LCRZ instrument setting files, 201 times test results
USB Storage Instrument setting files , measurement result CSV files, screenshots (GIF format)
Interface Control interface HANDLER
Communication
interface		 USB DEVICE, RS232C, GPIB (option)
Storage interface USB HOST (U-disk storage)
