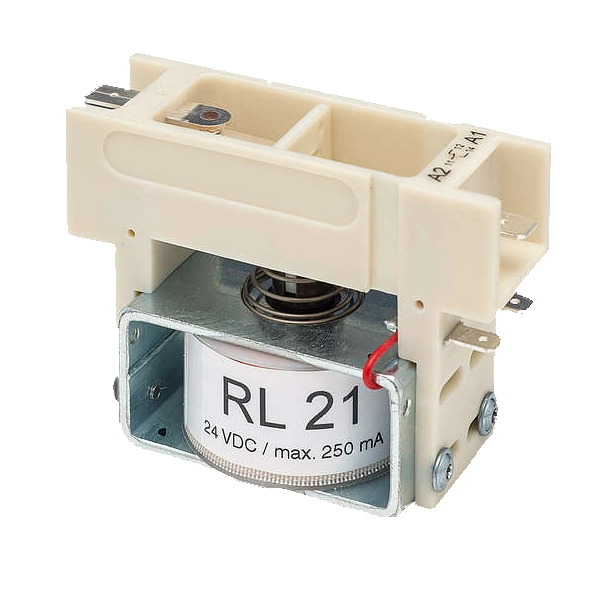

High Voltage Relay RL 21
Product number:
60050
EAN:
4260254470196
£92.76*
In stock
Details
Fachberatung unter
+49 421 277 9999
+49 421 277 9999
Print
Product information "High Voltage Relay RL 21"
Highlights
- HV-relay with 1 Change over contact
- Monostable DC relay
- Exciting coil: 24 VDC / 0.25 A
- Breaking capacity 5000 VA max. (Ohmic / resistive load)
- Test voltage: 20000 VDC
- Max. switching voltage: 6000 VAC
- Operating current 10 AAC max.
- Constant current 30 AAC max.
- Temperature -25 °C up to +40 °C
- Switching frequency max. 3 / sec
- Mechanical switching cycles 5*E+6 max
- Basic body made of high-insulated plastic
- CE conformity
- Coils and operating connections safe from interchanging
- Space saving mounting
- Status indicator with LED
- Extinguishing diode for exciting coil
Dimensions HV Relay
- Width: 44 mm
- Height: 55 mm
- Length: 78 mm
- Weight: approx. 220 g
- connection circuits with flat plug 6.3 * 0.8 mm
- connection exciting coil with flat plug 4,8 * 0,8 mm
- Mounting-Clip 35 mm (optional)
