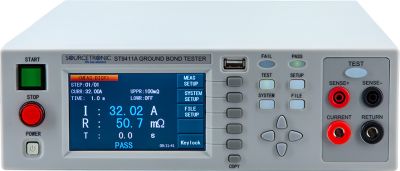

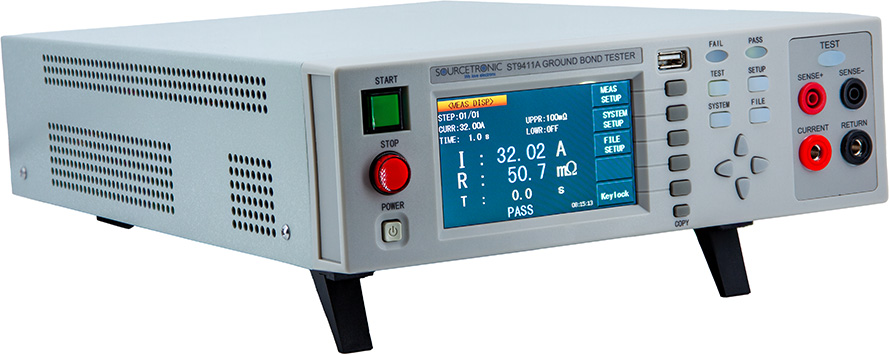

Ground Bond Tester ST9411A
Product number:
64386
EAN:
4260689523870
£1,639.90*
Only 1 left in stock
Details
Fachberatung unter
+49 421 277 9999
+49 421 277 9999
Print
Product information "Ground Bond Tester ST9411A"
Highlights
- Test current: 1 A - 32 A
- Grounding resistance range: 0-600 mΩ
- Four-terminal test mode to ensure test accuracy
- The internal power amplifier circuit drives the current output, which is not affected by the power supply and load

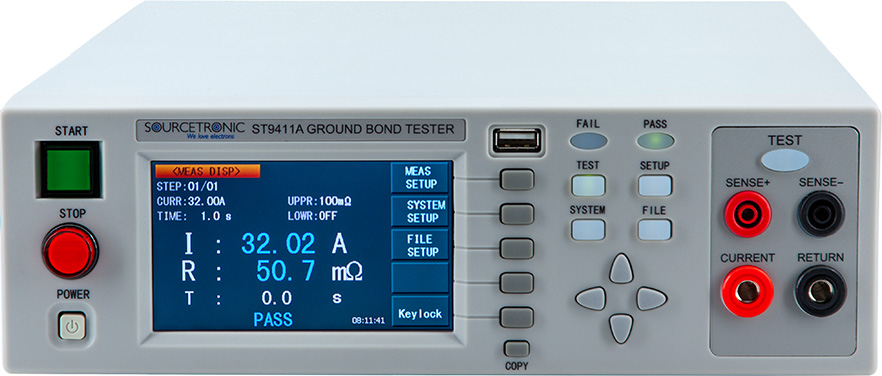

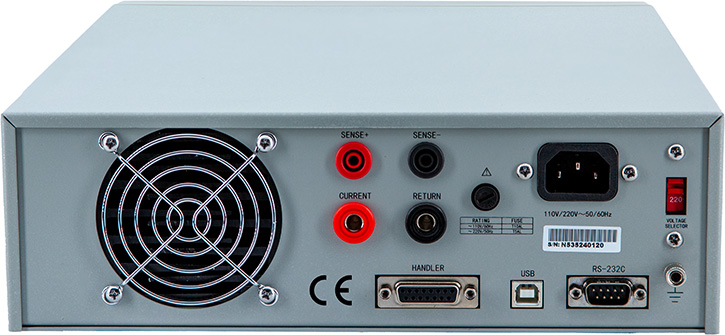

- The output holes on the front and rear panels are designed to facilitate the integration of standard chassis
- 480 x 272 dots, TFT-LCD display
- 999.9 seconds test time
- Keyboard lock function to prevent misoperation
- Safety lock function to prevent the instrument from accidentally opening the test state
- Store 20 test files, each with 20 test steps
Technical Data
- Test current: 1 A - 32 A
- Current Range:
- 1 A - 5 A
- 5.01 A - 32 A
- Output Voltage: 8 V max
- Frequency: 50 / 60 Hz：± 0.1%SET
- Test Range: 0-600 mΩ (Rmax <=6 / Iset (Iset: Setting Current)), The max Resistance could be 600 mΩ when the current is less than 10A.
- Accuracy: ± (2 % Reading + 2 Digit)
- Resolution: 1 mΩ
- Test Time
- Range: 0, 0.5 - 999.9 s (0 = Continuous)
- Resolution: 0.1s
- Accuracy: ± (0.1 % + 0.05 s)
- Input Power:
- Voltage: 110 V, 220 V
- Frequency: 47.5-63 Hz
- Temperature / Humidity: 0° C - 40° C, ≤ 90 % RH
- Dimensions: 340 mm x 120 mm x 450 mm
- Weight: 15 kg
- CE-compliant
What's in the box
- Ground Bond Tester ST9411A

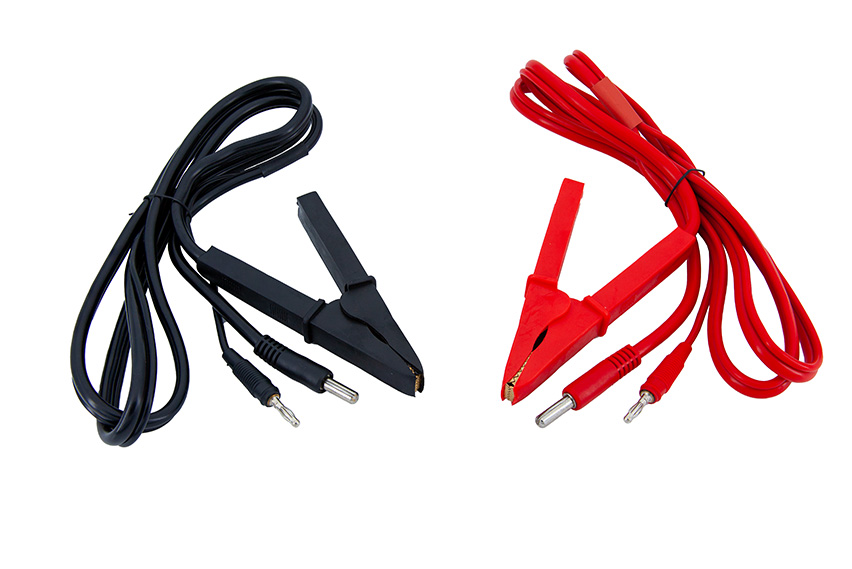

- Standard Accessories
