Ground Bond Tester RS36A-25
£1,926.08*
Details
+49 421 277 9999

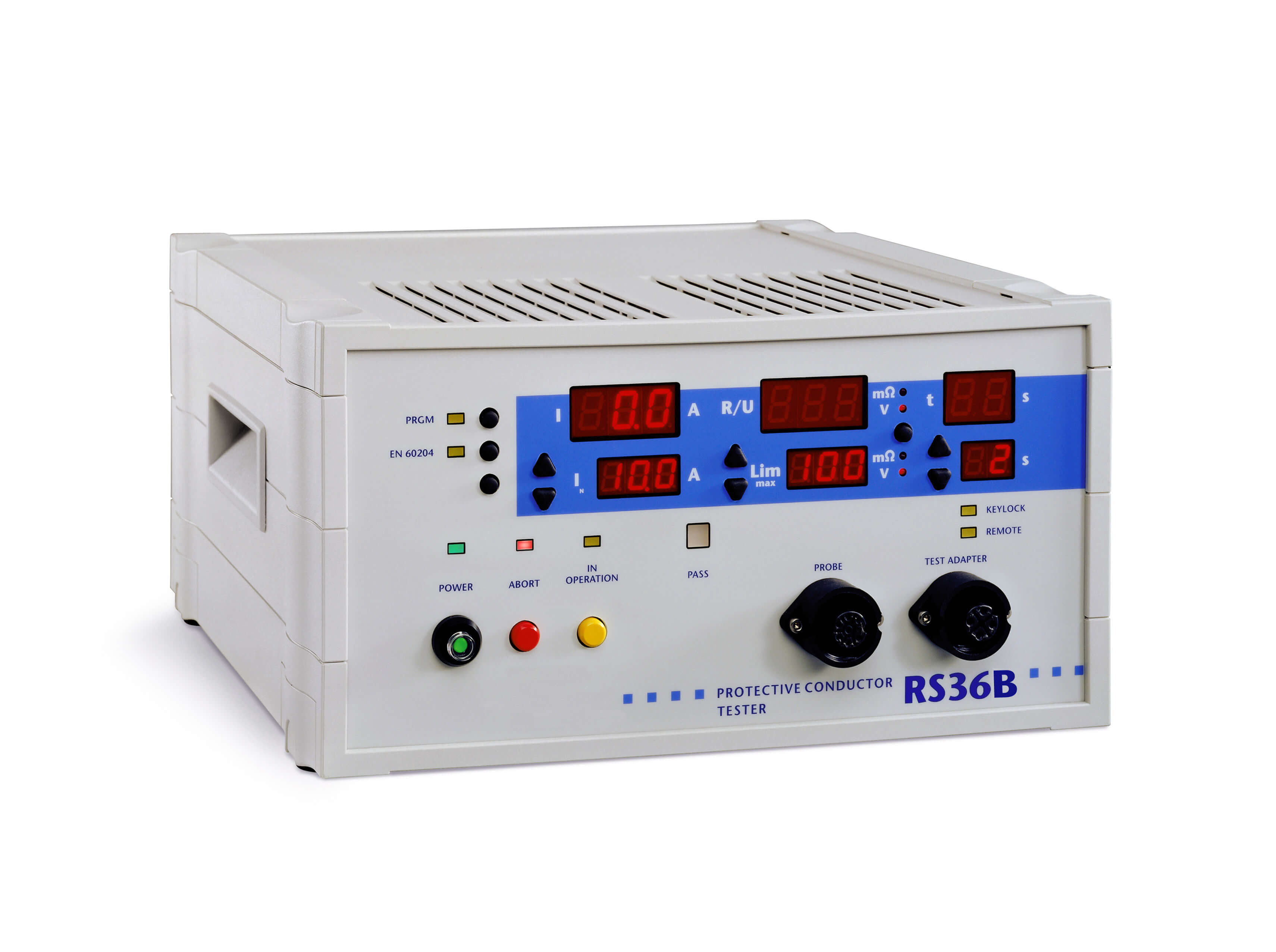

The ground bond tester RS36A-25 provides a test current of 25A AC with an open circuit voltage of 6V or 12V. The probe VP36C includes LED status indicators PASS / FAIL to lighten the work. Thus, inter-visibility is not needed. The 4-wire measurement is integrated into the tester. It also has digital interfaces I/O (PLC), RS232 and CAN. This ground bond tester is ideal for the fast PE final testing.
Highlights
- 25A Ground bond tester
- 4-wire measurement technique
- Comfortable result display inside the testing
- PE test to EN60204
- Four-pin test point
- Seven-pin test point (including status)
- Flexible contacting of the test object via: Schuko plug, quick pressure clamps (flying leads), 2 test probes, alligator clips
- Programmable test parameters
- Rear terminals (optional)
- RS232, digital I/O, CAN
- Connections (PLC, footswitch, test cage, 2-hand operation ...)
PE Test
- Test current:
- Output current: 10A - 25A
- Current Type: AC
- Resolution: 0.1A
- Accuracy: 1% ± 1 Digits
- Test voltage: 12 VAC
- Resistance:
- Measurement Range:
1-300 mΩ (0A - 10A-Range),
1-200 mΩ (10A - 25A-Range) - Resolution: 1mΩ
- Accuracy: 1% ± 1 Digits
Technical Data
- IS-IS-Display LED (power, time, resistance)
- Test time: 1-99s / 1-99min and infinitely
- Resolution: 0.1s - 0.1min / 1s - 1min.
- Error message: auditory, visual, interface
- Actual and set-point display (current / resistance)
- >Test period starts after the test current has been reached completely
- Keypad Lock
- Result outputs programmable
- Various options Buzzer
- LED brightness control
- Start mode (start button, PLC, PC, foot switch selectable)
- Printer Function: language, I.O., N.I.O, always
- Minimum current monitoring
- Program memory for test parameters
- CAN for the expansion stages of development
- Digital I / O interface:
- START / STOP
- PASS / FAIL
- Test runs - Connectors:
- 4-pin-measuring connection
(Contact via an appropriate adapter cable)
- 7-pin-measuring connection
- Foot, test cover, curtain, transfer line, 2-hand bed. - Contacting assistence
- Magnetic linking prism
- Diagonal nippers
- Nippers with steel EZS200
- Nippers with steel EZS400 - Power supply: 230V, 50/60 Hz, 1.5A max.
- Operating temperature: +5 ° to +45 °
- Humidity: 70% (non-condensing)
- Height: 2000 m above sea
- Compact industrial housing (RAL 7035)
- Protection: IP20
- Dimensions (W / H / D): 585/212/325 mm
- Weight: 20 kg
- CE-conformity in accordance with EN 50 191
Electrical safety and standards
- EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use
- EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements
- EN61000-3-3/ EN61000-3-2
- EN 50191 Erection and operation of electrical test equipment
What's in the box
- Power cable
- Manual
- Factory calibration
Options
- VP36C-2 Earth-Probe (cable 2m, earnings LED)
- LTA36-2 adapter cable with Schuko
- Grounding Clamp EZ200, EZ400
- PE Earth Test Cable in different length
- RS232 connection cable
- DataView software
- CONTROL cable for PLC (SUB-D 3m, 9-pin)
