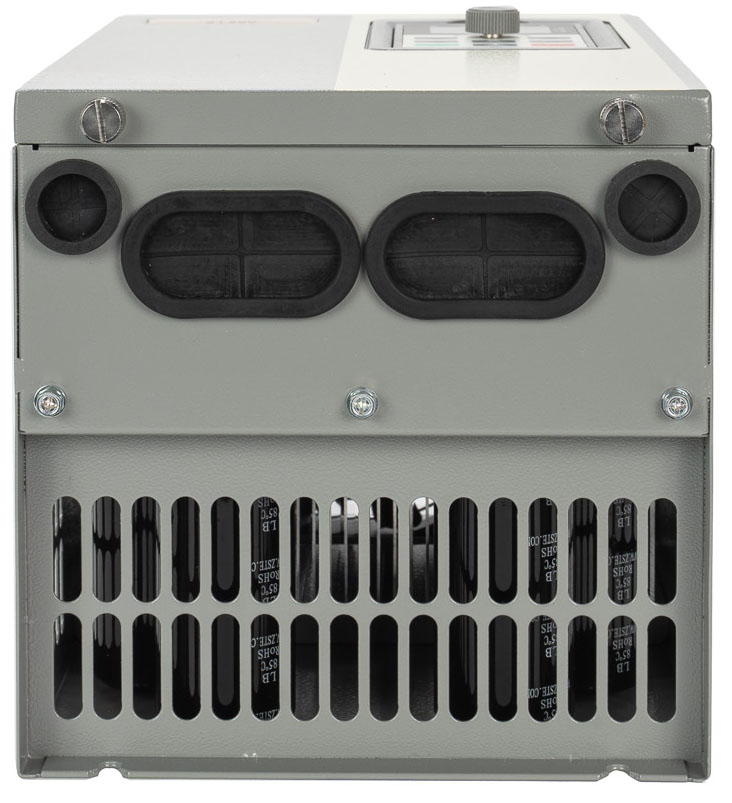

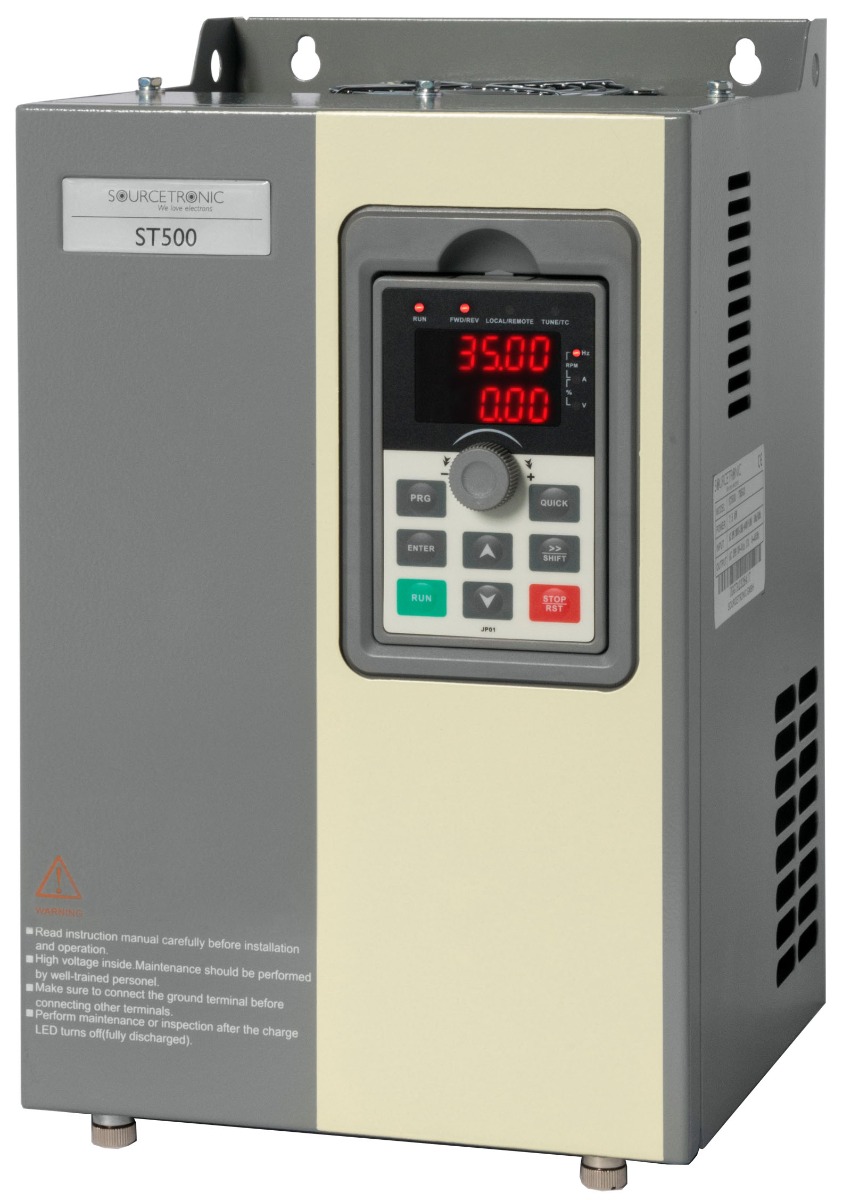

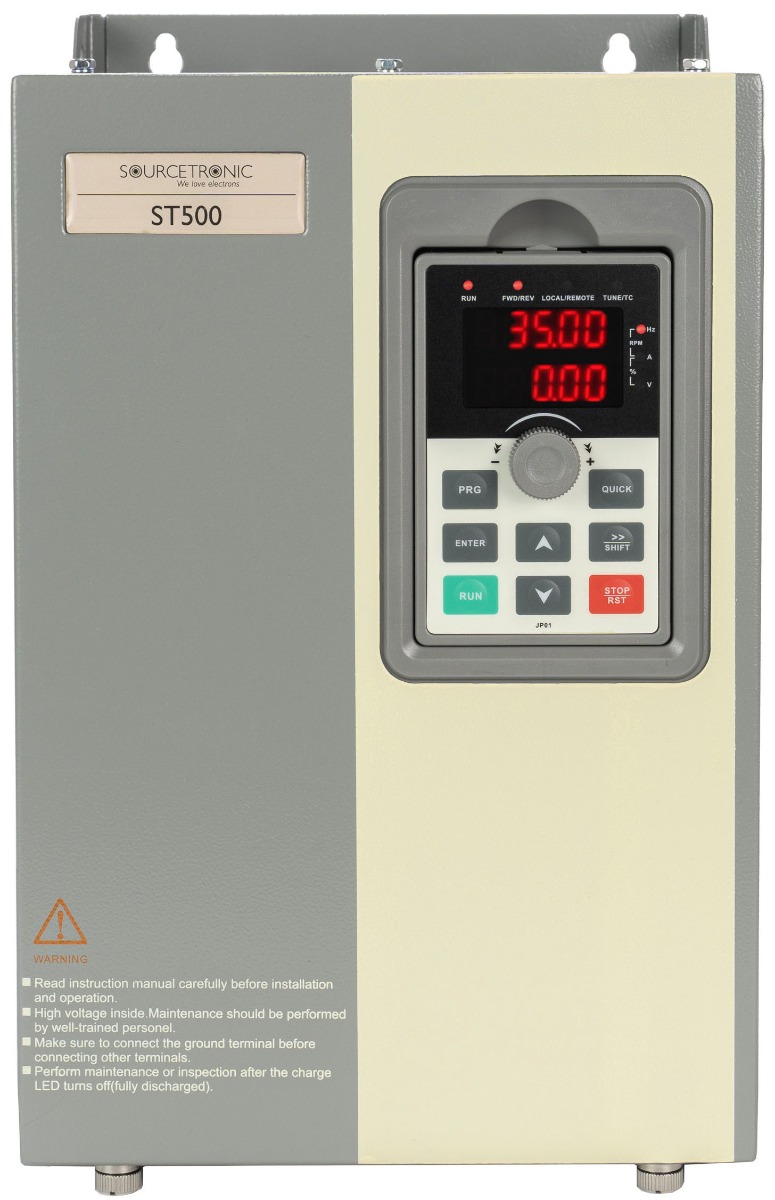

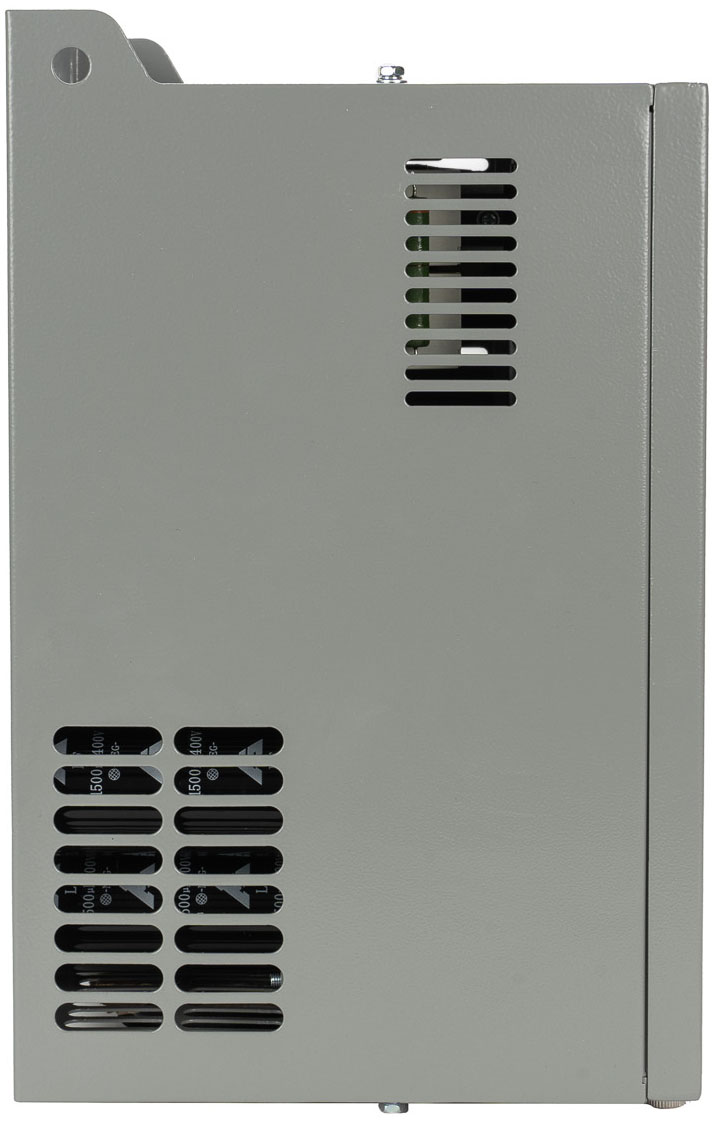

Frequency Inverter ST500 30KW - 132KW 400V
From £897.27*
Details
+49 421 277 9999
Highlights
- Voltage: 380V(-15%) – 440V(+10%)
- Frequency: 50/60Hz, ± 5%
- Optimal pre-set of parameters
- Short installation time, easy intuitive start-up operation
- Flexible digital – and analogue I/Os
- Motor speed adjustable by potentiometer
- "Open-Loop-Boost-Mode"
- Auto slip compensation
- Extended PID functions
- Stop-function
- EMC filter category C3 integrated
Inputs
Digital Input |
|
| Programmable Digital Inputs: | 8 |
| Voltage: | 0 - 24VDC |
| Logic: | PNP / NPN |
| Max input voltage: | 30VDC |
| Number of programmable pulse inputs: | 1 |
| Max input frequency: | 100kHz |
| Resolution for frequency control: | 0,01Hz (0-320Hz), 0,1Hz (0-3200Hz) |
Analog inputs |
|
| Number of analog inputs: | 3 |
| Type of inputs: | AI 1: 0-10V / 0-20mA AI 2: 0-10V / 0-20mA AI 3:-10-+10V / 0-20mA, PT100 |
| Resolution for frequency control: | max. Frequency * 0,1% |
Outputs
Output (U,V,W) |
|
| Control modes: | V / F characteristic / vector control O. PG / vector control m. PG |
| Output voltage: | 0 - 100% of the power supply |
| Output frequency: | 0 - 300Hz (Vector control) 0 - 3200Hz (V/F - Control) |
| Rated motor voltage: | 400V |
| Ramptimes: | 0,0 - 6500,0s |
| Ramp functions: | Linear / S-Curve |
| Overload functions: | 150% for a minute 180% for 2 seconds |
| Carrier frequency: | 0,5kHz - 16,0kHz adjustable |
| U / f curve modes: | Linear / Square / Adjustable |
Digital output / Pulse output |
|
| Programmable Outputs: | 2 |
| Voltage | 24VDC |
| Logic: | PNP |
| Min. Output frequency: | 0Hz |
| Max. Output frequency: | 100kHz |
Relais outputs |
|
| Programmable Outputs: | 2 |
| Terminal number: | TA1 / TC1 (close) TB1 / TC1 (open) |
| Ma. Power AC: | NO: 250VAC / 5A; NC:250VAC / 3A |
|
Max. Power DC: |
30VDC / 1A |
| Functions: | 39 |
Analog Outputs |
|
| Programmable Outputs: | 2 |
| Voltage: | 0 - 10VDC max. 5mA |
| Current: | 0 - 20mA max. load 250Ohm |
| Functions: | 16 |
Modbus |
|
| RS485 | Integrated |
Technical Data
- Start/Stop-ramp linear: 0.0-6500.0s
- PID feedback signal DC(0-10V), DC(0-20mA)
- Motor nominal frequency 50Hz and 60Hz
- Forward and reverse operation
- Controller release/terminals/Bus
- 16 fixed speeds can be freely set and chosen by input signals
- 10 ways to control speed
- Step less setting of PWM frequency 1kHz-15kHz
- Slots for extensions: special pump control, I/O extension, incremental encoder
- Output frequency:
- Vector control: 0-400Hz
- V/F control: 0-320Hz
- Control mode:
- V/F control (linear, square)
- Vector control W/O PG
- Accuracy: 0.5%
- Speed control:
- Control range 1:100
- Accuracy 0.5%
- Torque:
- Automatic boost for low frequencies down to 1Hz
- Manual increasing 0.1% - 30%
- Response time: <40ms
- Starting torque: 150% from 0.5Hz
- Speed limits adjustable
- Closed-Loop-Technique
- Display:
- Frequency, current, voltage, torque, PID, ...
- Error message
- Keyboard lock
- Automatic functions:
- Indication of motor parameters
- Tension regulation (AVR)
- Zero-Voltage-Switching
- Active current limitation
- Restart after power fail
- Slip compensation
- DC brake function (time, intensity, frequency) & JOG-control
- Reduced motor noises caused by precise PWM-function
- Elegant avoidance of vibrations by blocking frequencies
- Variable speed by continuous torque
- Error memory
- Temperature -10°C up to +40°C above sea level without power reduction
- Storage temperature -20°C up to +65°C
- Humidity 90% RF – without condensation
- Altitude up to 1.000m above sea level without power reduction
- Safety standards in accordance to EN 61800-5-1:2007
- Electromagnetically tolerance in accordance to EN 61800-3:2004+A1:2012
- Vibration test below 5.9m/s² = 0.6g
- Protection class: IP20 (EN 60529), NEMA 1
- RoHS-conform
- CE-conform
Integrated protection concept
- 100 % ground fault protection
- Over- and under-voltage
- Over- and under-current
- Overheating protection
- Over voltage stall
- Overheating protection
- Communication fault
- PID feedback abnormity

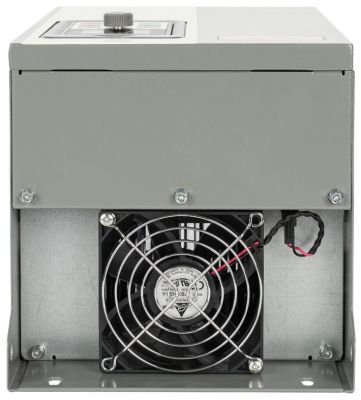

- Cooling according to power rating (fan temperature controlled)
- Password protection
- Auto-self testing after restart
- Power failure bypass
I/O interfaces
- Digital and analog I/O - flexible configuration
- 8 digital inputs 9-30VDC (PNP/NPN)
- 3 analog iputs (0-10V / 0-20mA)
- 2 digital output 0-24VDC / 0-40mA
- Pulse output 0-50kHz
- 2 analog input 0-10VDC, 0-20mA
- 2 relay output (250VAC/30VDC, 5A)
- RS485 interface
Accessoires
- Devices: ST300 (Beta) / ST500 / ST600 series
- Clear parameter structure
- Easy changing of parameters
- Parameters can be saved on the PC and printed out via a printer
- Saved parameter files can be reloaded as a backup
- Communication via USB-RS485 adapter cable
- Control of a AC-Drive with an Android App via bluetooth
- Devices: ST9000 / ST500 series
- Plug and Play
- Control
- Operating system: Android
- Language: English
- Telefonische Beratung
- Auslegung und Inbetriebnahme
- Individuelle Parametrierung
- Programmbetrieb
- Parameterliste
- Devices: ST500
- Dimensions (B/H/T): 90/135/22 mm
- 2m cabel inclusive
- Power: 6.0 KW
- Resistance: 20 Ohm
- Max. current carrying capacity: 80A
- Voltage: <800V
- Temperature contact
- terminal: M6
- dimensions (W/H/D): 341/600/142 mm
- Weight: 12.5kg
- Start braking voltage (V): 670
- Maximum continuous braking current (A): 15
- Peak current (A): 50
- Protection: short circuit, overheating, over- and undervoltage
- RoHS compliant
- CE compliant
- IP20 protection
- Current: 65 A (nominal current must be greater than the input current of the frequency inverter)
- Voltage: 400 V
- Category: C2
- Reduces Voltagepeaks
- Attenuates electromagnetic radiation
- Rated voltage: 3x 400 Vac
- Voltage range: 3 x 0 - 500 Vac
- Rated current: 61 A
- for motor rated output approx. 30,00 kW
- Inductance: 0,100 mH
- Rated frequency: 0 - 50 Hz
- Switching frequency: 3 - 8 kHz
- Rated voltage: 3x 400 Vac
- Rated voltage (IEC): 3x 690 Vac
- Rated voltage (UL): 3x 600 Vac
- Short circuit voltage uK: 4% @ 400 Vac
- Voltage drop: 9.2 Vac @ 400 Vac
- Rated current: 3x 63 A
- Rated frequency: 50 - 60 Hz
- Inductance: 0,470mH
- Inductance deviation: ±10%
- Rated voltage: max. 3 x 400 Vac
- Voltage range: 0 - 520 Vac
- Voltage drop: 8.3 % @ 400 Vac
- Rated current: 61 A
- for motor rated output: 30 kW
- Rated frequency: 0 - 150 Hz
- Switching frequency: 4 - 8 kHz
- Price per meter
- Number of cores and mm² per conductor: 4G16 (3x 16mm² black and 1x 16mm² PE)
- Outer diameter in mm: 22.1
- Connecting cable for electric drives with high output
- EMC optimized and double shielded
- 3 + 3 symmetry reduces common mode interference
- Installation & Commissioning
- Configuration and parameterisation
- Switch cabinet construction
- Electrification of entire construction sites
- Frequency converter exchange
- Standard-compliant documentation
- Instruction of the operating personnel
- Frequency Inverter Quick Service
- Installation, commissioning, trial operation
- Instruction of the operating personnel
- Identification of error causes
- Reduction of subsequent and repeat faults
- Maintenance, servicing and retrofitting of systems
- Lifecycle management of drive technology
- Around-the-clock service": 24/7 monitoring service of plants
- Consulting and design drive technology
- Project planning Electrical engineering
- E-construction ePlan P8
- Programming/visualisation (PLC/HMI/JAVA)
- Monitoring, control and regulation systems
- Sensor consulting
- Processing of tenders with focus on drive technology, automation, pump controls
- Determination of energy saving potentials
- Planning, construction, delivery and installation of control systems
- Motor power: up to 30 kW / 400 V
- Rated current: 60 A
- Integrated frequency converter ST500
- Mains filter STFI (C2 environment)
- Motor choke
- Dry-running protection via current measurement
- External dry-running protection
- Motor temperature monitoring (PT100/PT1000/PTC)
- Overvoltage, undervoltage, overload protection
- Phase symmetry monitoring
- Password protection
- Power (motor): up to 30 kW
- Output voltage (motor): 0-400 VAC 0-50 Hz
- Maximum frequency: up to 3200 Hz
- Operating voltage: 400 VAC 50/60 Hz
- Rated current (inverter): 62 A
- Back-up fuse: 125 A
- Supply cable: max. 16 mm² copper
- Motor cable: max. 16 mm² copper, max. 50m long (shielded)
- Protection class: IP54, EN60529/NEMA4
- Weight: 50 kg
