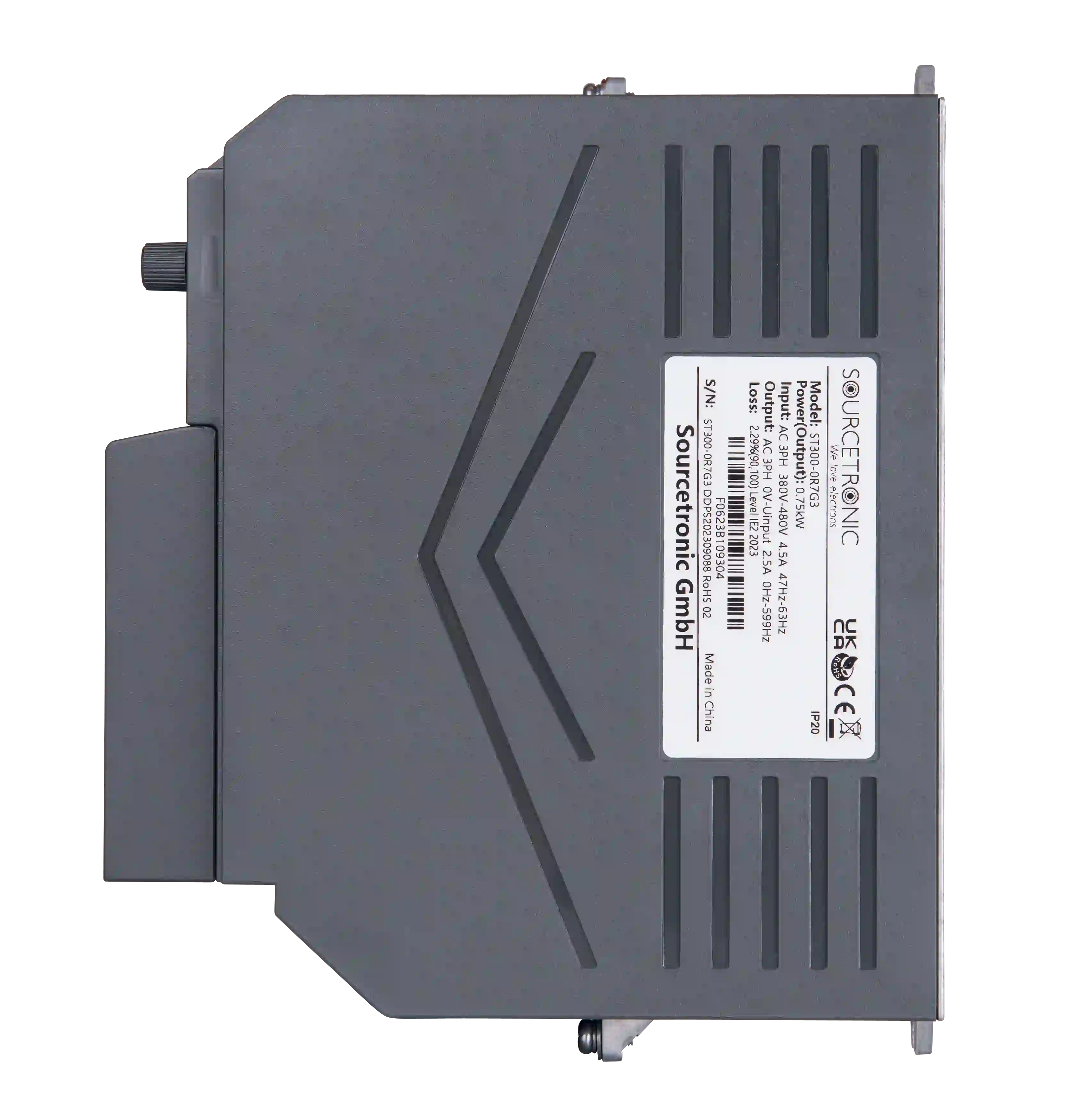

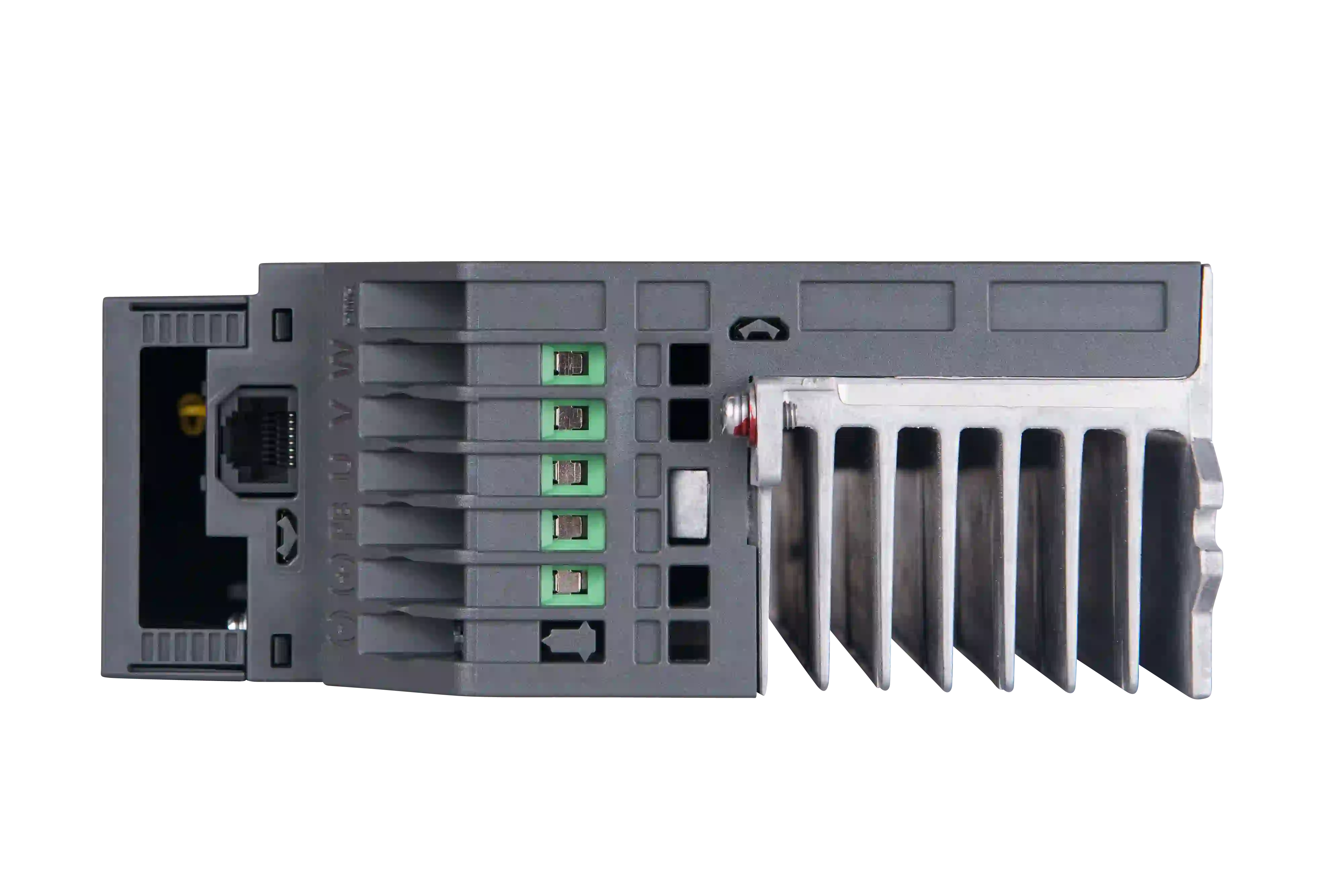

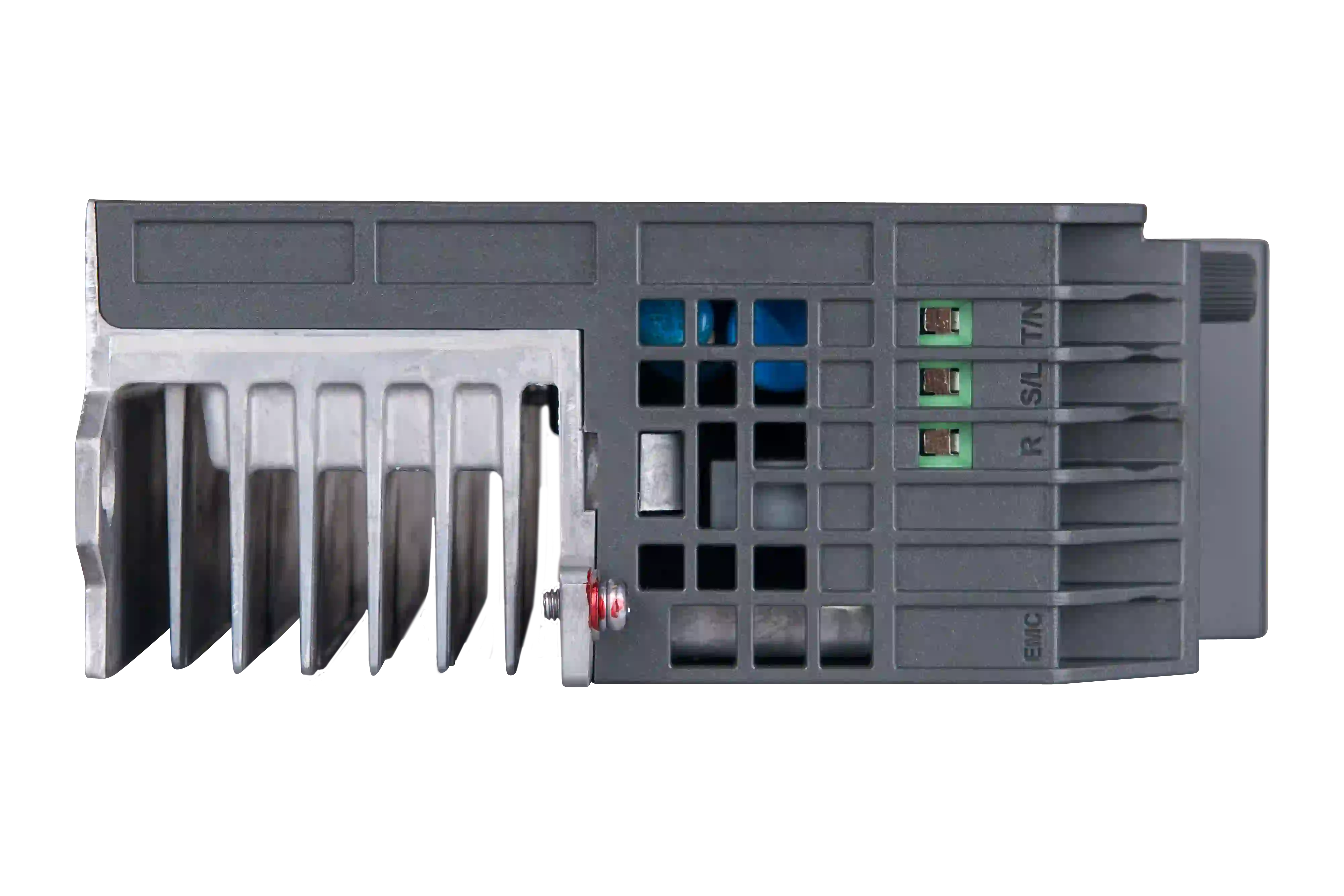

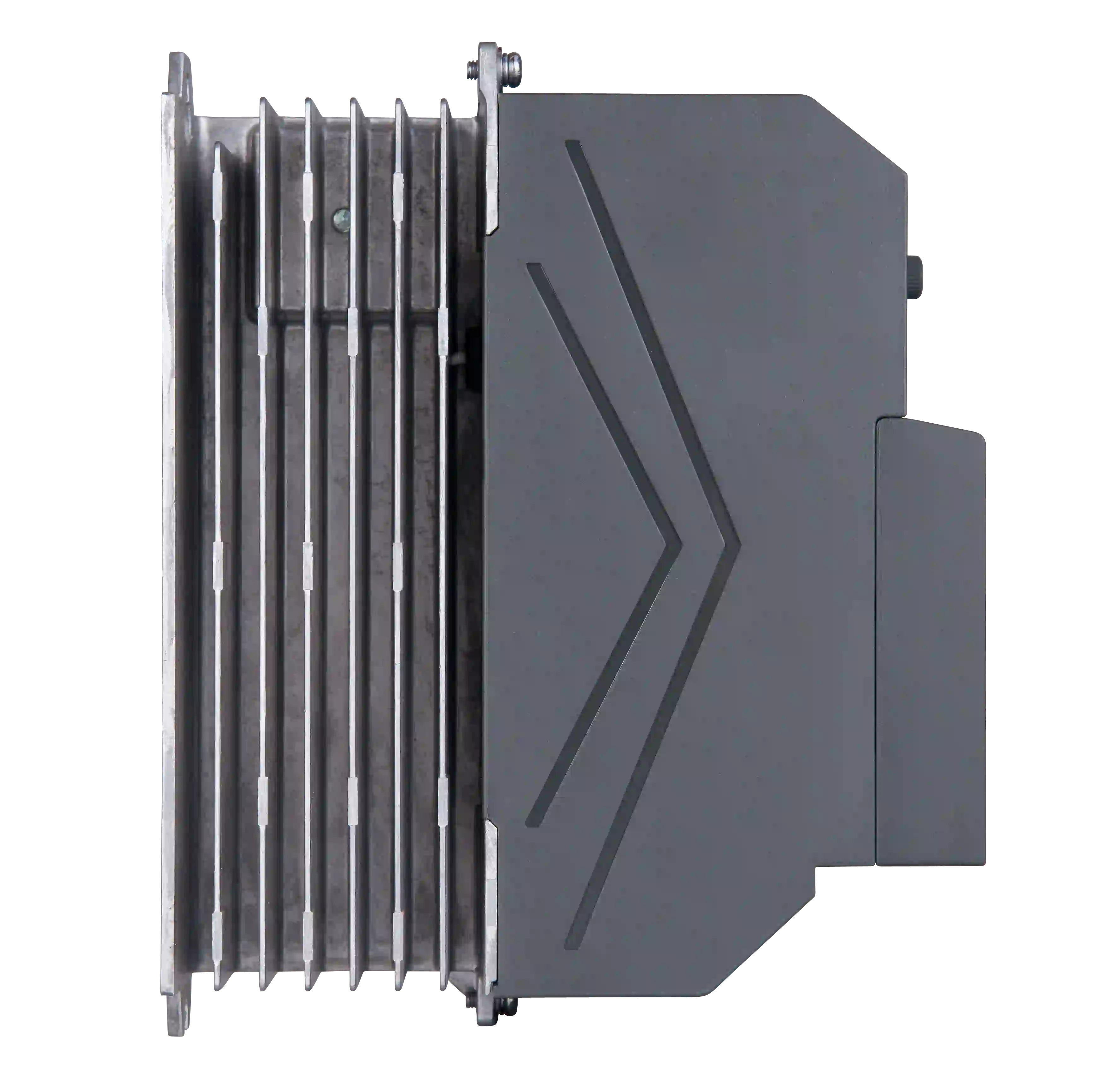

Frequency Inverter ST300 0.75KW 400V
Product number:
64343
EAN:
4260689523351
£152.44*
In stock
Details
Fachberatung unter
+49 421 277 9999
+49 421 277 9999
Print
Product information "Frequency Inverter ST300 0.75KW 400V"
Highlights
- Power: 0.75 kW
- Input Current: 4.5 A
- Output Current: 2.5 A
- Input Frequency Range: 50 Hz / 60 Hz ( ± 5%)
- Output Frequency Range: 0 Hz - 599 Hz
- Voltage: 380 V(-15%) – 480 V(+10%)
- Side-by-side Mounting: Compact design requiring minimal space, easy installation in tight spaces
- Top Entry: Optimal integration into a control cabinet with top entry
- Push-in Terminals: Control wiring terminals are push-in terminals, allowing for easy connection
- Shield Mounting Plates: Shielded cables can be mounted EMC compliantly on the top and bottom
- STO: Every ST300 series frequency inverter features the STO safety function (SIL3, PLe)
- German User Manual: A highly detailed German user manual is available for free download
- First-class technical support from experts, comprehensive user manual, and helpful FAQs
- Integrated C3 filter, higher level possible simply via external filters
- Modbus RTU: The frequency inverter features an RS485 interface with the Modbus RTU standard
- Adjustment options: Over 40 digital input functions, over 20 digital output functions, and over 20 analog output functions
Scope of Delivery
- ST300 Frequency Inverter
- Shield Plate A/B
Technical Specifications
Network Properties |
|
| Input Voltage: | AC 3~ 380V (-15%) to 480V (+10%) |
| Rated Power: | 0.75 kW |
| Input Rated Current (at 380V): | 4.5 A |
| Input Frequency: | 50Hz or 60Hz ±5%, with a maximum change rate of 20%/s |
| Integrated EMC Filter Class: | C3 |
Motor Connection Data |
|
| Control Modes | V/f Characteristic / Open Loop Vector Control |
| Output Voltage: | 0 - 100% of Supply Voltage |
| Output Current: | 2.5 A |
| Output Frequency: | 0 - 599Hz |
| Ramp Times: | 0.0 - 3600.0s |
| Ramp Functions: | Linear / S-Curve |
| Overload Function: | 150% for one minute180% for 10 seconds |
| Carrier Frequency: | 1kHz - 15kHz adjustable |
| V/f Curve Modes: | Linear / Quadratic / Adjustable |
| Braking Unit: | Integrated (external braking resistor possible) |
| Type of Motor: | Asynchronous Induction Motor or Permanent Magnet Synchronous Motor |
Digital Inputs |
|
| Programmable Digital Inputs: | 6, of which 4x max. 1kHz (S1-S4), 1x max. 50kHz (HDIA)with 42 input functions |
| Voltage Level: | 0 - 24VDC |
| Logic: | NPN (active when input is connected to GND) |
| Maximum Voltage at Input: | 30VDC |
| Number of Programmable Pulse Inputs: | 1 (HDIA) |
| Maximum Input Frequency: | 50kHz, duty cycle 30 to 70% |
| Resolution for Frequency Control: | 0.1% |
| Safety STO: | Redundant inputs for connection to +24V via NC contacts for the safety function STO (immediate interruption of power supply to the drive when at least one of the connections to +24V is interrupted). Factory connected to +24V via shorting links (STO inactive). |
Digital Outputs |
|
| Programmable Outputs: | 1 Open-Collector output, max. 1kHz |
| Voltage Level: | 24VDC, max. 30VDC, 50mA |
| Logic: | NPN (output is active against GND) |
| Minimum Output Frequency: | 0Hz |
| Maximum Output Frequency: | 1kHz |
| Number of Functions: | 25 |
Relay Outputs |
|
| Programmable Outputs: | 1 |
| Terminal Number: | RO1A: NO; RO1B: NC; RO1C: Common (Root Contact) |
| Maximum Power AC: | 250VAC / 3A |
| Maximum Power DC: | 30VDC / 1A |
| Number of Functions: | 26 |
Analog Inputs |
|
| Number of Analog Inputs: | 2 |
| Type of Inputs: | AI 1: 0-10V / 0(4)-20mA AI 2: -10 to +10V |
| Resolution for Frequency Control: | max. frequency * 0.05%, tolerance ±0.5%@25°C |
Analog Outputs |
|
| Programmable Outputs: | 1 |
| Voltage Range: | 0 - 10VDC max. 5mA |
| Current Range: | 0(4) - 20mA |
| Number of Functions: | 23 |
Communication |
|
| RS485 (RTU) | Integrated |
Dimensions, Weight |
|
|
|
| DimensionsW1 x H1 x D1(W x H x D) | 60mm x 190mm x 155mm |
| Mounting Hole Spacing | W2 = 36mmH2 = 180mm |
| Mounting Hole Diameter | 5 mm |
| Net Weight: | 0.99 kg |
Environmental Requirements |
|
| Operating Environment Temperature: | -10°C to 50°C: no derating required; Note: Derating becomes necessary when the ambient temperature exceeds 50°C. For further details, see the operating manual |
| Protection Class: | IP20 |
| Altitude: | Lower than 1000m, when exceeding 1000m, reduce the power by 1% per 100m altitude. |
| Vibration: | Max. Vibration ACC: 5.8m/s2 (0.6g) |
| Installation Direction: | Vertical |
| Relative Humidity (RH) | <90% |
Standards |
|
| EN/ISO 13849-1 | Safety of Machinery – Safety-Related Parts of Control SystemsPart 1: General Principles for Design |
| EN/ISO 13849-2 | Safety of Machinery – Safety-Related Parts of Control SystemsPart 2: Validation |
| IEC/EN 60204-1 | Safety of Machinery – Electrical Equipment of MachinesPart 1: General Requirements |
| IEC/EN 62061 | Safety of Machinery – Functional Safety of Electrical, Electronic, and Programmable Electronic Control Systems |
| IEC 61800-3:2018 | Adjustable Speed Electrical Power Drive SystemsPart 3: EMC Requirements and Specific Test Methods |
| IEC/EN 61800-5-1 | Adjustable Speed Electrical Power Drive SystemsPart 5-1: Safety Requirements – Electrical, Thermal, and Energy |
| IEC/EN 61800-5-2 | Adjustable Speed Electrical Power Drive SystemsPart 5-2: Safety Requirements – Function |
