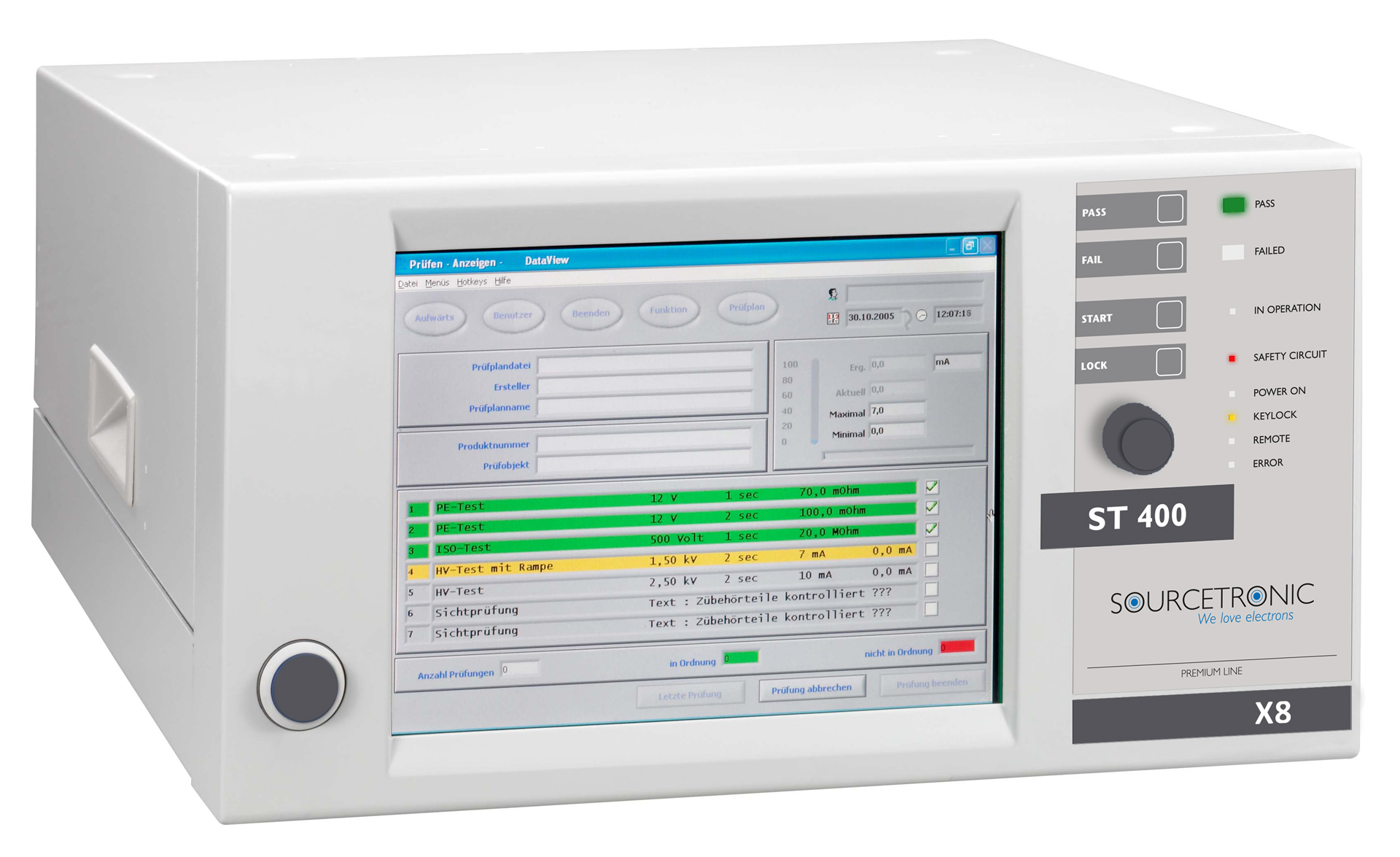

Electrical Safety Tester ST400 (Rental device)

This article is also in our shop available

Highlights

• AC / DC EST Electrical Safety Tester
• Brilliant 320x240 Colour-Touchscreen
• DLL, ActiveX, LabView drivers
• Quality control plan editor
• Switch on relay matrix
• Safety current limited - No barriers
• Test standards: EN60065 / VDE 0860, EN 60598 / VDE 0710, EN60335 / VDE 0686 / EN 50106, EN60601 / VDE 0750, EN 60950 / VDE 0805, and many more
• PLC, RS232, CAN
• GOOD-/ FAIL-display
• Dynamic memory management for test programs

Test steps

• Continuity and short-circuit test
  • 0-25 VAC / 0-100 Ohm
  • Thresholds up to 0.6 A
  • Electronically controlled
  • Adjustable Current Limit
• PE test
  • Test 2 to 25 AAC
  • Open circuit voltage 6 V or 12 V
  • Resistance measurement up to 500 mOhm
  • Fully electronic AC power source
  • 4-wire technology
• Insulation test
  • Voltage programmable: 50 VDC to 500 VDC
  • Measuring range 0 - 400 MOhm
  • Testing on interface or testing gun
  • Safety current limited in accordance with EN50191
  • Ramping with active discharge
• High-voltage test DC
  • Programmable voltage of 100 VDC to 3000 VDC
  • Tripping current 0.001 - 2 mA
  • Test on socket or test probe
  • Safety current limited in accordance with EN50191
• Function test
  • External power feeding up. 270 VAC / 10 A (1-phase)
  • Power consumption test, single-phase 0.01 to 10 AAC
  • For 50/60 Hz/li>

General

• Button: GOOD, BAD START, safety circuit
• LED indicators: GOOD, BAD, operation, safety
• Keylock, remote, error
• Main switch illuminated pushbutton
• Function rotary switch "Navigation Plus"
• Interfaces / Ports:
  • Controllable test process via PLC
  • I / O interface for relay matrix
  • ADF interface for analog and I / O frequency inputs
  • RS232, CAN, USB / LAN optional
  • HV connectors (2 pin)
  • PE test probe
  • SHK safety circuit (8 pin)
  • WK400 warning light connection
  • Redundant grounding PE
• Freely programmable device including all limits
• Operating modes: manual, digital, automatic, Ethernet
• Visual and audible alarm
• Auto Start function
• Internal clock / calendar
• Base period 0.1 ... 999.9 sec
• discharge of the DUT
• Passwords for the program, menu, service, macros
• Supply 90 V - 250 V, 50 Hz / 60 Hz
• Weight approximately 18 kg

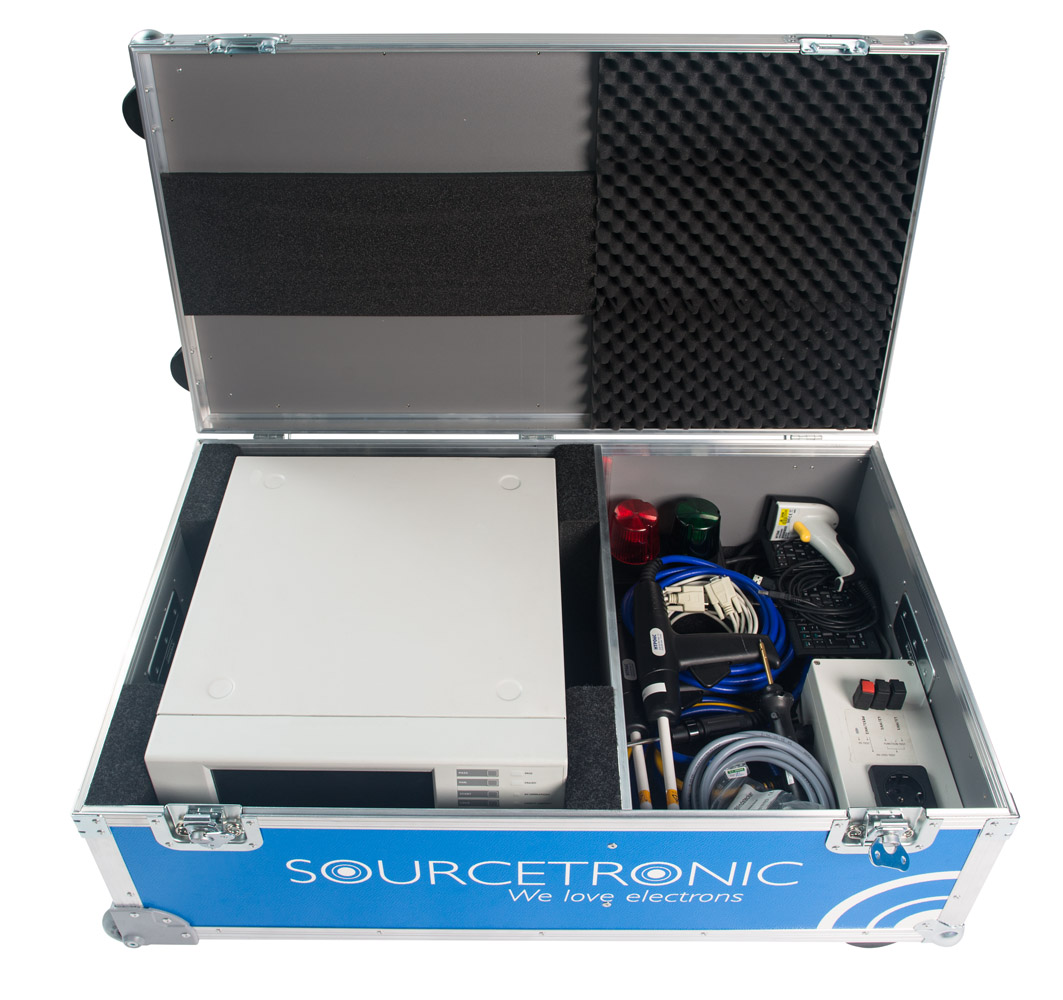

What's in the Box

• Mating connector for external power supply
• Power cord
• User manual
• Test report
