Battery Tester ST2523A
Product number:
61261
EAN:
4260254479793
£1,642.31*
Goods expected soon
Details
Fachberatung unter
+49 421 277 9999
+49 421 277 9999
Print

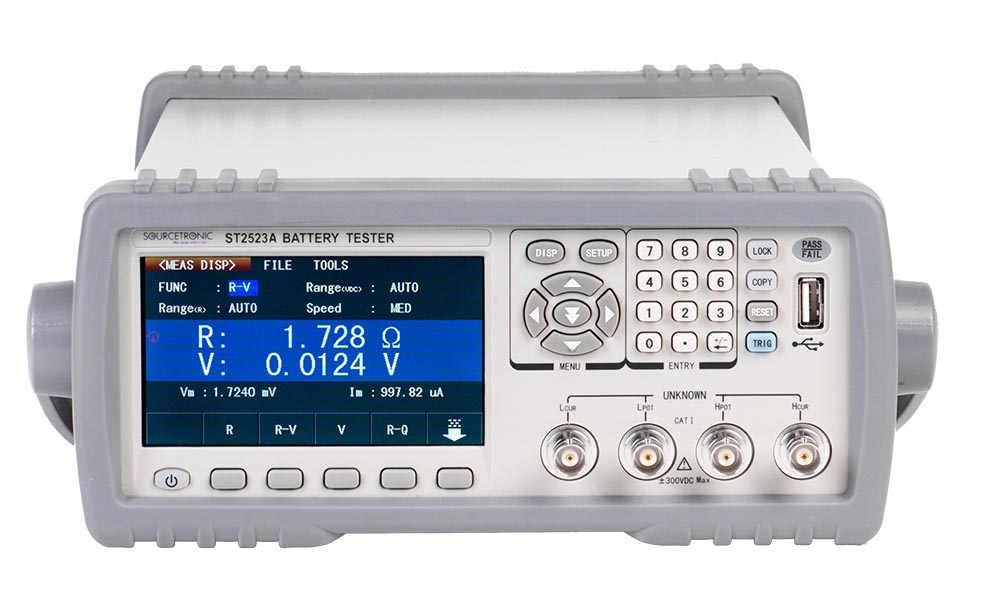

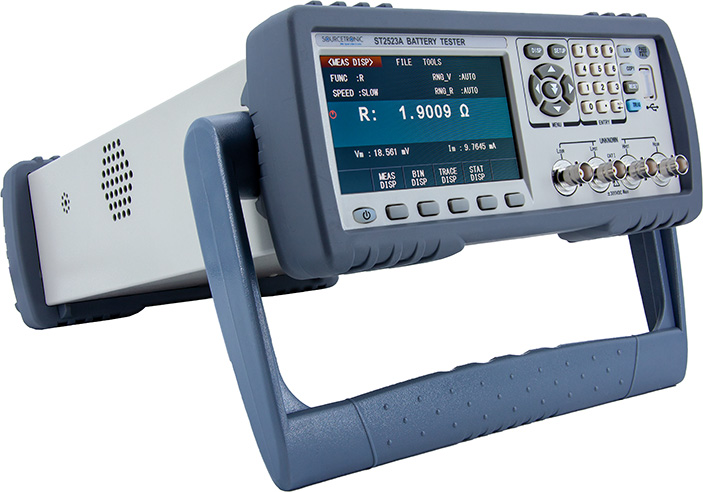

Product information "Battery Tester ST2523A"
Highlights
- Impedance basic accuracy: 0,1%
- Voltage basic accuracy: 0.05%
- Min. resolution of impedance: 1µΩ
- Min. resolution of voltage: 100µV
- Max. Test speed: 50 measurements
- 1kHz AC test with constant current
- Max. Input voltage 350V
Technical data
- Various test functions
- 4-wire measurement, the test cannot be influenced by the impedance of the test leads
- Display as deviation (absolute/relative) from reference value
- Measurement of R, V, L, Z, θ
- 4.3" LCD color display
- LCD resolution 480×272
- Direct display of measured value as well as display as deviation from reference value ΔABS, Δ%
- U, I Test signal level display
- Graphical display and evaluation
- 10 sorting ranges, upper and lower limit, overflow and alarm function
- Statistics, such as CpK, Cp, etc.
- 100 memory locations
- Save screen contents to USB stick with COPY button
- Trigger function by foot switch

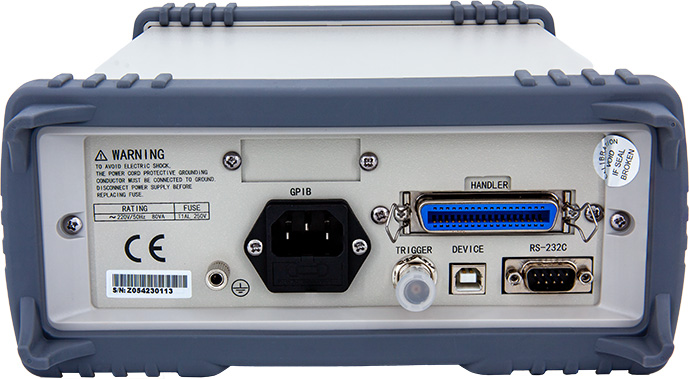

- HANDLER interface
- RS232, USB DEVICE, GPIB (optional) for data transfer to PC and remote control
- USB HOST for use with USB data carrier
- Power supply: 198V - 242V
What's in the box

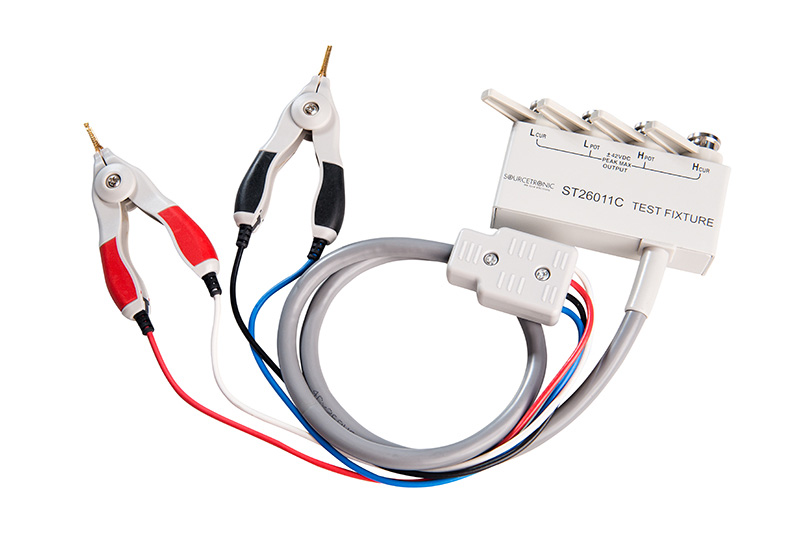

- ST26011C Kelvin Clip Terminal
- Power cable
- Spare fuse
- Operating instructions
Technical data |
|||
| Model | ST2523 | ST2523A | |
| Display | Resolution | 4.3" 480x272 24-bit color TFT display | |
| Displayed digits | R: slow 5 digits, max. displayed value 35000; fast 4 digits, max. displayed value 3500 V: slow 5 digits, max. displayed value 31000; fast 4 digits, max. displayed value 3100 |
||
| Parameter | R, V, R-V, Z-θ°, Z-θr, L-Q, L-R, R-X, R-Q | ||
| Measuring accuracy | R: 0.1%, V: 0.05% | ||
| Test signal source | Frequency | 1kHz±0.2Hz Sine wave | |
| Constant current | 100mA/10mA/1mA/100µA/10µA | ||
| Display range | R / Z / X | 1µΩ - 3,5kΩ | |
| DC V | 100µV - 65V | 100µV - 310V | |
| L | 0.2nH - 1H | ||
| Q | 0.001 - 9999.9 | ||
| θd(deg) | -179.99° - 179.99° | ||
| θd(rad) | -3.1416 - 3.1416 | ||
| Mathematical operations | Direct reading of measured value, deviation from reference value as ΔABS or Δ% | ||
| Range | AC R | 30mΩ / 300mΩ / 3Ω / 30Ω / 300Ω / 3kΩ | |
| DC V | 6V/60V | 30V/300V | |
| Max. Input voltage | 65V | 310V | |
| Measuring speed (measurements/s) | Fast: 50 measurements per second Medium: 10 measurements per second Slow 1: 5 measurements per second Slow 2: 3 measurements per second |
||
| Comparator | 10 compartments | ||
| Measuring range functions | Auto, Hold | ||
| Trigger functions | Automatic (internal), Manual, External, Bus | ||
| Operating mode |
Control of I/U at the DUT; RELative value display; Zero correction by short-circuit measurement; |
||
| Interfaces | HANDLER, RS232, USB Device, GPIB (optional), USB Host | ||
General Data |
|||
| Application range | Temperature | 0°C - 40°C | |
| Humidity | ≤90% rel. LF | ||
| Operating supply | Voltage | 100V - 120V , 198V - 242V | |
| Frequency | 47Hz - 63Hz | ||
| Power consumption | Max. 15VA | ||
| Dimensions (W×H×D) | 215mmx87mmx335mm (net) 235mmx105mmx360mm (with protection) |
||
| Weight | Approx. 3.6kg | ||
