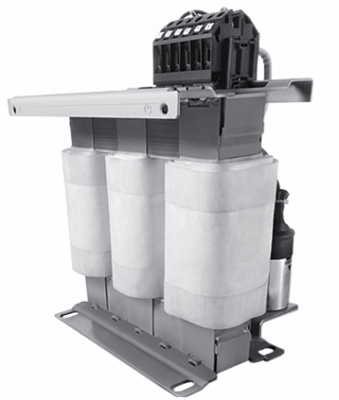

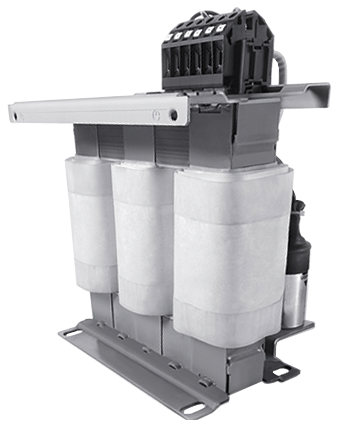

Sine filter SFB-N 400/90

Advantages

• Prevention of overvoltages on the motor
• Very good corrosion protection and low noise due to vacuum impregnation
• Long cable lengths possible
• Reduction in motor noise
• Reduction in line-borne and field-borne emitted interference
• Reduction in motor losses

Application

• Sine filter for the suppression of differential mode interference.

Operating data

• Rated voltage: max. 3 x 400 Vac
• Voltage range: 0 - 520 Vac
• Voltage drop:  10% @ 400 Vac
• Rated current: 90 A
• for motor rated output: 45 kW
• Rated frequency: 0 - 150 Hz
• Switching frequency: 4 - 8 kHz

Approvals

• Approvals: cURus
• DIN EN 61558‑2‑20
• IEC 61558‑2‑20
• UL 508
• CSA 22.2 No. 14‑9195

Enviroment

• Ambient temperature max.: +40 °C

Safety and protection

• Type: offen
• Insulation class: H
• Protection index: IP 00
• Safety class (prepared): I
• Test voltage: 3000 Vac, 50Hz

Terminal and mounting

• Terminals phase: Screw clamp, 50 mm²
• Terminals PE: Bolt, M8
• Fixing method: Fixing rail
• Fixing screws: M8
• Mounting position: Only for vertical mounting
• Weight: 53 kg

Measures

240 x 320 x 300 (W x H x D)

Dimensions in mm
