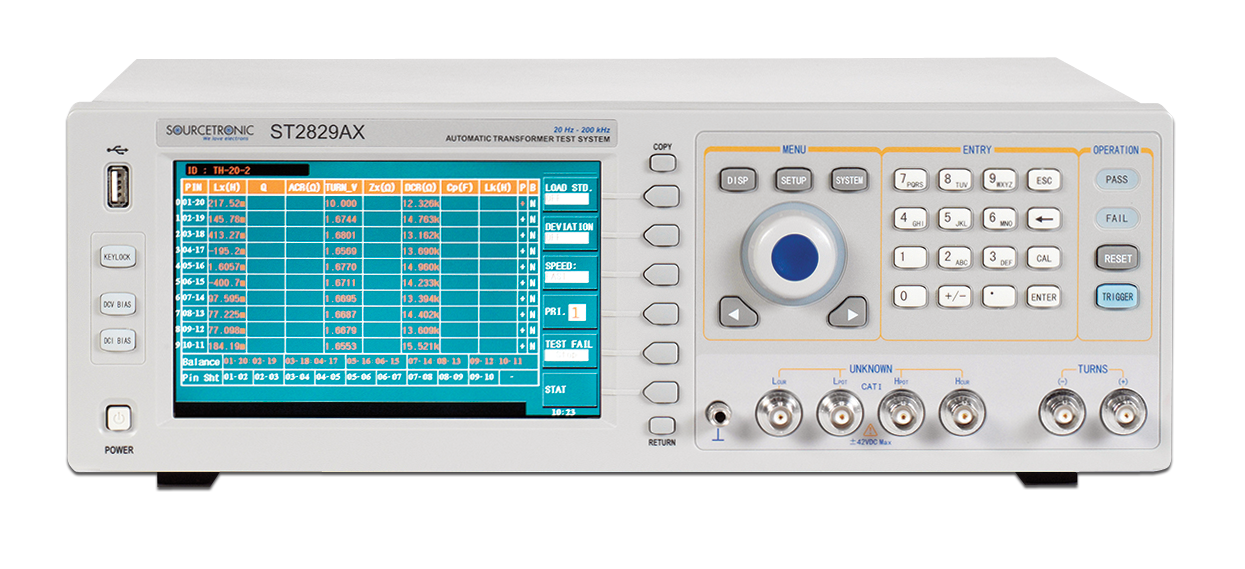

Transformer Tester ST2829AX-24
€3,580.00*
Details
+49 421 277 9999
Speed, Accuracy, Efficiency
Most switching transformer and network transformer manufacturers have an urgent need for a transformer test system that can achieve more functions, high efficiency and accurate test. On the basis of thorough market research and analysis, advanced impedance test technology and rich experience on the development of ST2818X & ST2819X automatic transformer test system, Sourcetronic has launched a new series of automatic transformer test system - ST2829X series combines faster test speed, higher accuracy and efficiency. ST2829X will be a great assistant for your transformer tests.
Highlights
- Frequencies: 20Hz - 200kHz
- Basic Accuracy: 0.05%
- 800x480 LCD-color-display
- Measuring Speed: 13ms
- Interfaces: LAN-LXI, USB, RS232, Handler, DCI, (GPIB option)
- LCR option
- 24 Pin
Overview
Specification
- 7" 16:9 TFT LCD display with a resolution of 800x480
- Up to 1MHz test frequency, 0.5mHz resolution
- Signal amplitude range: 5mV to 10Vrms, 100μVVresolution
- Test speed is up to 75meas/sec
- Built-in 0-100mA/0-10V bias source (standard) or 1A bias source (optional)
- Diode P/N characteristic detection can test all parameters of network transformer
- Improved high turn ratio and weak coupling transformer test ability
- Improved DCR test ability for low-ohm winding
- Flexible time-labeling system: time of file setting, calibration and deduction can be saved
- Sort the selected scanning parameters
- Flexible deviation and deduction modes
- Multiple handling ways for FAIL cases
- Single parameter test cycle can be used to test a separate winding
- Internal memory for up to 200 setting files and external USB memory for more
- Test data and graphs can be saved as CSV, GIF format to USB memory
- The built-in software provides analysis abilities, such as Cpk, Cp and Ck
- Bar-code reading function can be used to select a setting file or to manage the type of test products
- Parameter setting files are compatible with ST2818X/ST2819X
- Program setting files with your local PC
- Upgrade operation software of USB HOST and RS232C online
- Multiple interfaces are optional for PC communication
- To network multiple testers through LAN-LXI interface
Accurate test: wider ranges of test frequency and voltage
According to different frequency ranges, ST2829X provides three types of testers for your choice: ST2829AX with a frequency range of 20Hz to 200kHz, ST2829BX, 20Hz to 500kHz, and ST2829CX, 20Hz to 1MHz. All the three types have a minimum resolution of 0.5mHz and accuracy of 0.05% which can meet your test requirement in you current and future product tests. In addition, ST2829X has equipped a 5mV-10Vrms signal source with a 100uV resolution thus helping you make more accurate test.
High efficiency test: unbeatable fast test speed greatly improves you test efficiency
In combination with test-, control-, display- and processor technology, ST2829X realizes an unbeatable test speed: 75meas/sec. Compared with ST2819X, the scanning speed has improved 40%. With such a fast test speed, your test and production efficiency will improve a lot and further reduce you production cost. When you only need to know PASS or FAIL status, you can turn off the LCD display and then PASS/FAIL LED indicators on ST2829X front panel will show you test result. In this case, the test speed is about 1.5 times faster than that of ST2819X and you can benefit from such a speed as well.
Unique test function: bring much convenience to your test
Most network transformers have diode or LED, but previous transformer testers can not provide the diode P/N characteristic detection function. For network transformer manufacturers, this deficiency brings much inconvenience to their tests and even becomes the bottle-neck of efficiency improvement. Now ST2829X can help them solve this problem by configuring an effective diode P/N characteristic detection function. Users can set its positive constant current source from 0 to 200mA and its negative current to 1uA.
Reduce your budget: standard configuration of 0-100mA/10V DC bias source can greatly reduce your budget
When providing strong test functions, we still try to reduce your budge. 0-100mA/10V bias source is an indispensable function for transformer test, but it is an optional function in the past and you have to pay more for it. But now, this function is a Sourcetronic-standard one on ST2829X, your budget can be greatly reduced. 100mA bias source and 1A bias source are both available on ST2829X. On previous transformer test systems, only 100mA bias source or 1A bias source can be installed, but now the two bias sources have been equipped to ST2829X at the same time and users can make independent control on them on the front panel.
Display more information: all scanning test results and four LCR parameters can be displayed in one screen
The electronic transformer is a kind of special electronic components that has multiple pins and parameters and their tests need the test system to scan various parameters. For the limit of display devices, the test results have to be displayed in several pages on previous transformer test systems, and in order to view all test results, users must turn pages for several times. ST2829X applies a colorful 7" TFT LCD display with a resolution of 800 x 480 which can display all test results of single scanning test in one page and bring much convenience to user’s observation and view. When the LCR test function is selected, the display can not only display primary and the secondary parameters in traditional mode but also display two groups of primary and secondary parameters at the same time. In this way, more information can be displayed and users do not need to change the required parameter menus frequently.
Convenient data storage: directly save the scanning test results and the displayed page to external USB disk
![USB-Port Transformer Tester ST2829AX USB-Hub](/shop/wysiwyg/ST2829AX_USB.jpg)
Through the USB HOST interface on the ST2829X front panel, you can save the required data to your external USB disk. Beyond that, the status file, transformer scanning test results, LCR parameters and current displayed page can be quickly saved to the internal FLASH. Users can save those data as CSV, XLS, GIF format so as to print, summarize, store and analyze.
Greatly improved performance: improved turn ration and stable low DCR test ability
Turn ratio test is a vital item in electronic transformer parameter test, but the wide turn ratio range and the weak electromagnetic coupling are the main obstacles to their accurate measurements. By a series of technologic improvements, such as 10Vrms test signal, unique sampling and composing methods for transformer primary and secondary signals, improved calculation method for turn ratio, the turn ratio test made by ST2829X can be faster, more accurate and reliable. ST2829X has a better test ability for low DCR, that is to say the tester can realize an accurate and stable measurement even when DCR is quite low. This ability ensures a reliable test for small-number and large-diameter coils.
Advanced file management function: bar-code management function
![Bar-Code Scanner Transformer Tester with bar-code option](/shop/wysiwyg/ST2829AX_Laser.jpg)
ST2829X can read the bar-code of DUT though USB HOST port. This function can set bar-codes for previous setting files or create a new file by scaning a bar-code to the tester. The corresponding test file will be easily found by reading the bar-code or manually inputting the barcode. Bar-code management function can improve your management abilities of products and files.
Creative network of tester: connect several testers through LAN-LXI interfaces to realize data transfer.
10/100 Base-T LAN-LXI interface is a standard configuration for ST2829X. Through an HUB, several testers can be connected to a common PC from their LAN-LXI interfaces. With the networking software that Sourcetronic provides, users can build a networking and automatic transformer test system and further realize the networking control for several transformers. All setting files can be programmed on the PC and be sent to each tester. Users can view the test process of each tester on PC. In addition, test results can be uploaded to the PC through the network so as to make storage, statistic and analysis.
![LAN interface Transformer Tester with LAN option](/shop/wysiwyg/ST2829AX_LAN.jpg)
Strong searching function: several searching modes for setting files
ST2829X can store up to 200 setting files in the internal memory, so it is hard to search a particular file. For this point, ST2829X provides several file searching methods. When you input a key word, fuzzy search can find relative files. If you enter the accurate file name, accurate search can find the corresponding file. As stated above, barcode search can find the corresponding file when you manually input or scan a barcode.
Easy upgrade: compatible with file systems and test accessories of ST2818X/ ST2819X
Sourcetronic has marketed the automatic transformer test system for many years and ST2818X/ST2819X automatic transformer test system has gained a lot of trust and support from our customers. ST2829X is completely compatible with all test fixtures, test fixture jigs, control interfaces and setting files of ST2818X/ ST2819X. Scanning test fixtures, TH1901 and TH1805, can be directly used on ST2829X. You do not need to worry about the incompatibility problem of the old and the new testers.
Practical analysis function: built-in software provides several statistic analysis abilities
Cost reduction, technology advancement and PASS rate improvement are main ways for transformer manufacturers to increase profits and productivity. ST2829X offers you statistic analysis functions such as Cpk, Ck and Cp. Users can choose test results of several parameters (less than 5 parameters) to make analysis. By this method, analysis data can be quickly gained and used to improve products. Number of samples that can be used to make analysis is up to 9,999.
Fast fixture self-test: provide self-test function for scanning fixtures to ensure their reliable work
The working principle of transformer scanning fixtures is to apply an array of hundreds of relays to scan and switch different test pins and signals. For the long and frequent use of relays, their contact performance will decrease, which will further affect scanning test results. ST2829X can selftest the performance of scanning relays and find out failed relays, so users can make repairs in time and ensure that scanning fixtures work well all the time.
What's in the box

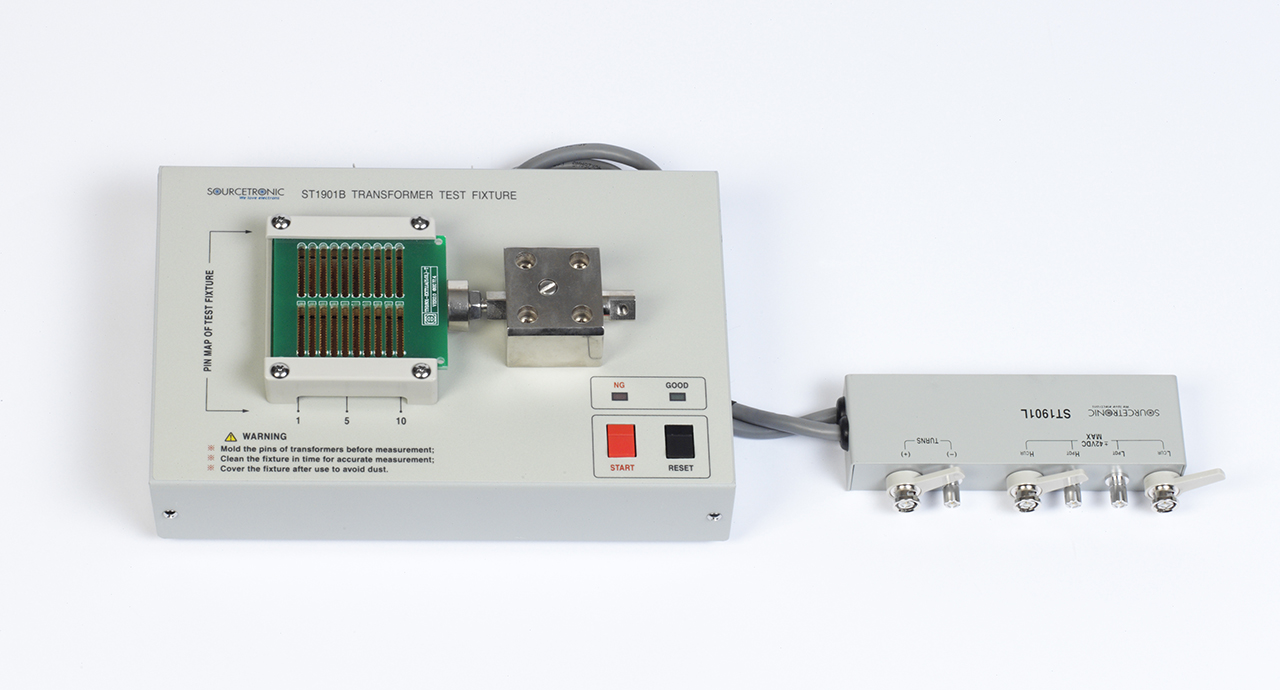

- ST1901B Manual transformer scanning fixture

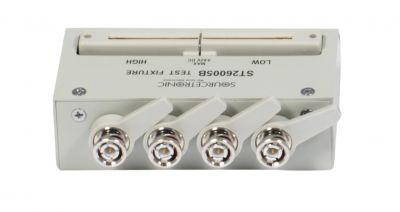

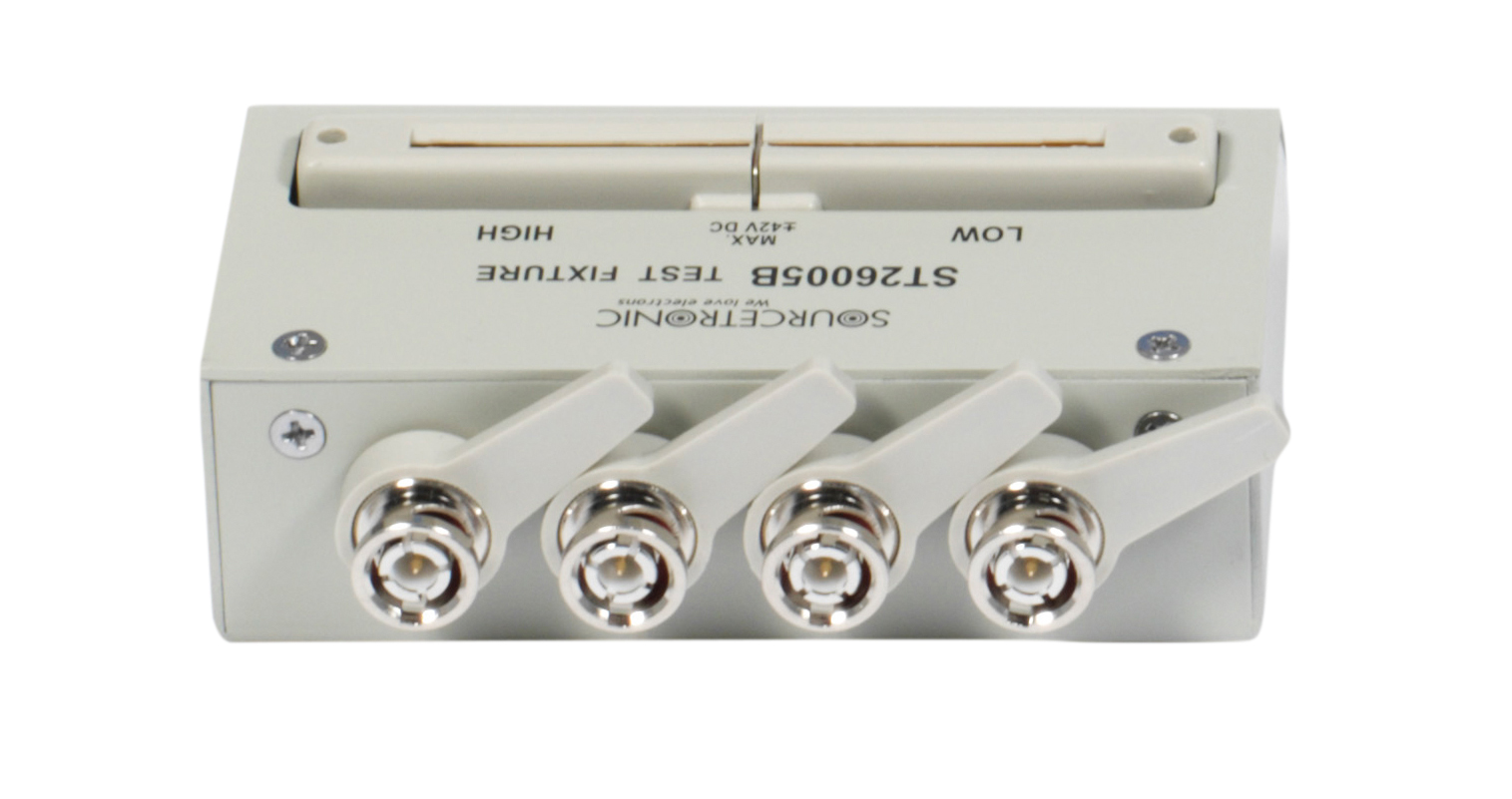

- ST26005B 4-terminal test fixture

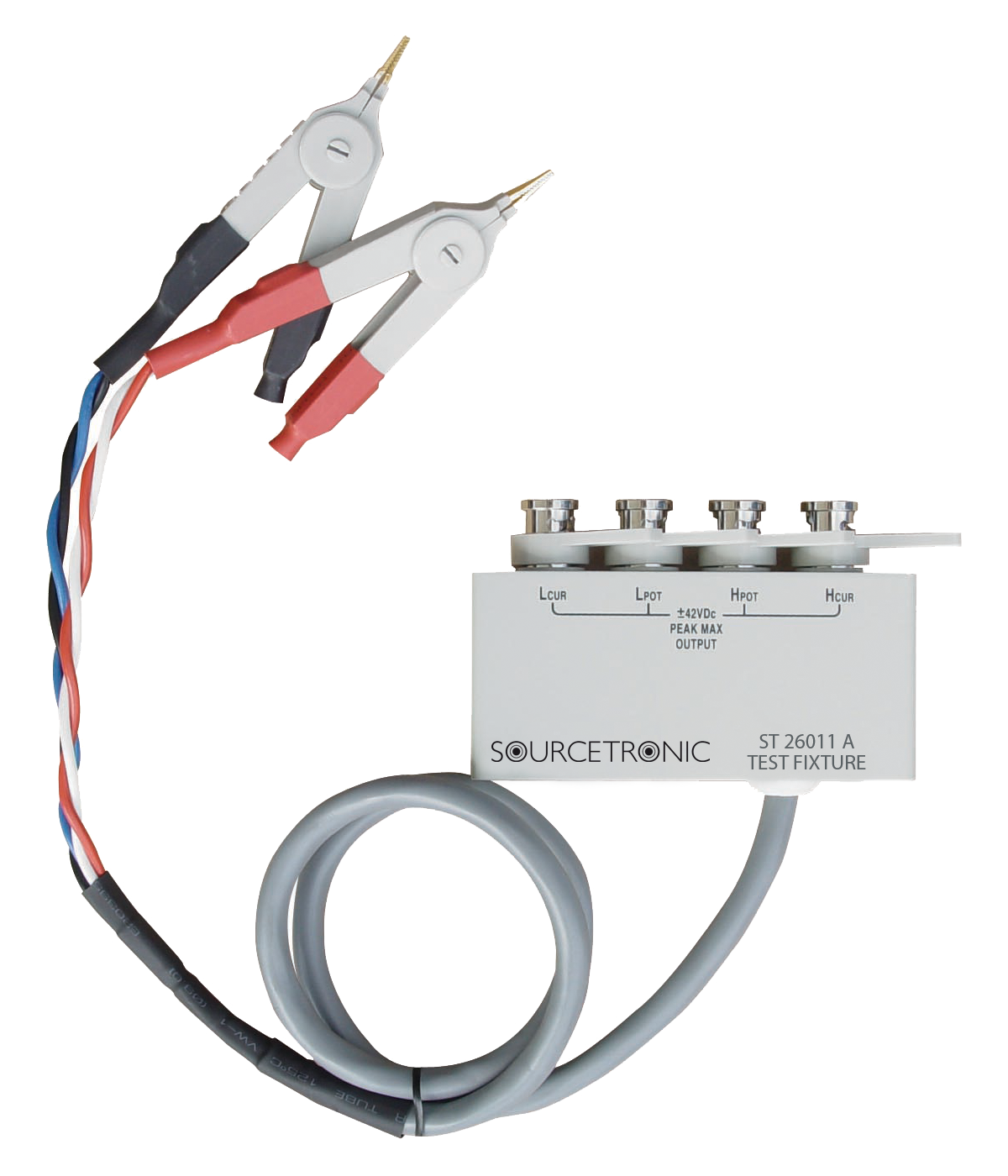

- ST26011A 4-terminal Kelvin test clip leads
- ST26004B 2-terminal test clip leads
- ST26016 Transformer scanning control cable
- ST1901-001 Foot switch
- ST26010 Gilding short board
- EN - ST2829 User Manual (4.55 MB)
- DE - ST2829 Bedienungsanleitung (4.96 MB)
- EN - ST2829AX-24 Handler (1010.75 KB)
Technical Specifications |
|||
Model | ST2829AX-24 | 24-Pin Transformer Scanning Test + LCR Test (Optional) ST2829X provides a 10-hour function-experience for LCR test. The experience version will be automatically turned off after 10 hours of using. If you do need this function, please contact our salesmen or distributors and provide your detailed instrument serial number. |
|
ST2829BX | |||
ST2829CX | |||
Basic accuracy (See operation manual) |
LCRZ | 0.05% | |
DCR, Turn ratio |
0.1% | ||
Calibration | Warm-up time = 30 minutes, Environment temperature: 23±5ºC, Signal voltage: 0.3Vrms – 1Vrms Zeroing: After OPEN or SHORT Length of test cable: 0 m |
||
Frequency of test signal |
ST2829AX-24 | Range: 20Hz - 200kHz | Min. resolution: 0.5mHz Accuracy: 0.01% |
ST2829BX | Range: 20Hz - 500kHz | ||
ST2829CX | Range: 20Hz - 1MHz | ||
Output impedance of signal source | 10Ω, 30 Ω, 50Ω, 100Ω(selectable), ±1% @1kHz | ||
Level of AC test signal |
Normal level | 5mV - 10Vrms | Min. resolution: 100µV, accuracy: 10%xset voltage+2mV |
50µA - 100mArms | Min. resolution: 1µA | ||
Constant level | 10mV - 5Vrms | Min. resolution: 100µV, accuracy: 10%x set voltage+2mV |
|
100µA - 50mArms | Min. resolution: 1µA | ||
DC bias voltage source |
0V - ± 10V | Min. resolution: 0.5mV, accuracy: 1%x set voltage+5mV | |
0mA - ± 100mA | Min. resolution: 0.5µA | ||
DC constant current source (optional) (for diode P/N characteristic test) |
0 - ± 120mA | Min. resolution: 0.5mV, accuracy: 1%x set voltage+5mV | |
DC bias current source (optional, ST2901) |
0 - ± 1A | Min. resolution: 0.5mA, accuracy: 1%x set voltage+2mA Load open voltage: = 9 V |
|
Transformer test parameters | Turn Ratio, Turns, Phase, L, C, Lk, Q, ACR, DCR, Balance, Pin Short, Diode P/N | ||
LCR test parameters | |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR, Turn-Ratio,Phase, Lk | ||
Display range of DCR | 0.00001 Ω - 999.999 MΩ | ||
Display range of turn ratio | 1:0.001 - 1000:1 | ||
Display ranges of LCR parameters | |Z|, R, X | 0.00001Ω - 99.9999MΩ | |
|Y|, G, B | 0.00001µs - 99.9999s | ||
C | 0.00001pF - 9.99999F | ||
L | 0.00001µH - 99.9999kH | ||
D | 0.00001 - 9.99999 | ||
Q | 0.00001 - 99999.9 | ||
θ (DEG) | -179.999º - 179.999º | ||
θ(RAD) | -3.14159 - 3.14159 | ||
Δ % | -999.999% - 999.999% | ||
Diode test | Positive voltage | 0 - 9.9999 V | |
Negative current | 0 - 99.999 mA | ||
Measurement speed (=10 kHz) |
Fast: 75meas/ sec(13ms), Medium: 11meas/ sec (90ms), Slow: 2.7meas/ sec (370ms) | ||
Equivalent circuit | Serial, Parallel | ||
Range mode | Auto, Hold | ||
Trigger mode | Internal, Manual, External, Bus | ||
Average times | 1 - 255 | ||
Calibration function | Open, Short, Load | ||
Math operation | Direct reading, ΔABS, Δ% | ||
Delay time | 0 - 60.000s, 1ms resolution | ||
Comparator | 10-bin sorting, BIN1~BIN9, NG, AUX | ||
Bin counter | |||
PASS/FAIL on front panel, LED indication on scanning fixture | |||
Memory | 200 sets of LCRZ setting files 200 sets of setting files for transformer scanning 10 sets of GIF files |
||

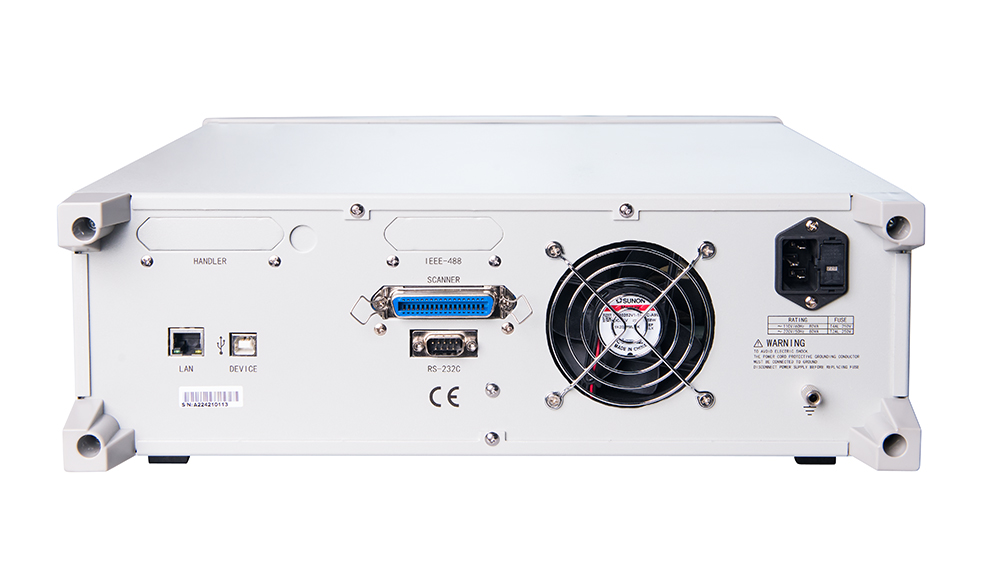

Interface | Control interface | HANDLER (optional) on rear panel SCANNER(compatible with TH1901A/B, TH1805A/B transformer scanning fixtures) |
|
Communication interface |
LAN-LXI, GPIB (optional), USB HOST, RS232C | ||
Memory interface | USB HOST (USB memory or bar-code scanning) | ||
General Specifications |
|||
Operating environment |
Temperature | 0°C - 40°C, | |
Humidity | ≤ 90%RH | ||
Power supply | Voltage | 99V-121V AC, 198V-242V AC | |
Frequency | 47Hz - 63Hz | ||
Consumption | Max. 80 VA | ||
Dimension (W×H×D) | 400mm×132mm×385mm | ||
Weight | Approx. 13 kg |
