Surge Tester ST2883-5
Product number:
60687
EAN:
4260254479397
€3,690.00*
Only 1 left in stock
Details
Fachberatung unter
+49 421 277 9999
+49 421 277 9999
Print
Product information "Surge Tester ST2883-5"
The Surge Tester ST2883-5 can operate directly from a standard browser LAN LXI. With the generous coloured 7 "TFT display you can see directly all data and curves.
Highlights
- LAN / LXI 5kV Surge tester
- Fast measurement speed of 6 meas/sec.
- 4 waveform comparison methods
- Area, Differential Area, Corona Discharge, Differential Phase
- 65k color 7" TFT wide display screen
- Pass/Fail comparison output
- Interfaces: Handler, RS232, USB, LAN
- Waveform can be stored on USB-Sticks (500 Groups)
- Foot switch
Features
- Output Impulse Voltage 100V – 5000V, 10V resolution
- Accuracy: 2%
- Voltage Control Modes Constant and Normal
- Impulse Energy maximum 250 milli-Joules @ 1kOhm
- Inductance Range > 10 µH
- 200 MS/s sampling rate
- 1-phase
- Input Impedance 5MOhm
- Sampling Resolution 8 bits
- Sampling Length 960 Bytes
- Direct display of comparison results
- Average Rate Programmable 1 – 99
- Internal Waveform Data Memory 20 Groups
General
- Power: 115 / 230 V ± 10 %, 50/60 Hz
- Weight 15 kg
- Dimensions 400x132x390 mm
- Operating Environment 0°C - 40°C, ≤ 75% RH
What's in the box
- ST2881-001 Footswitch

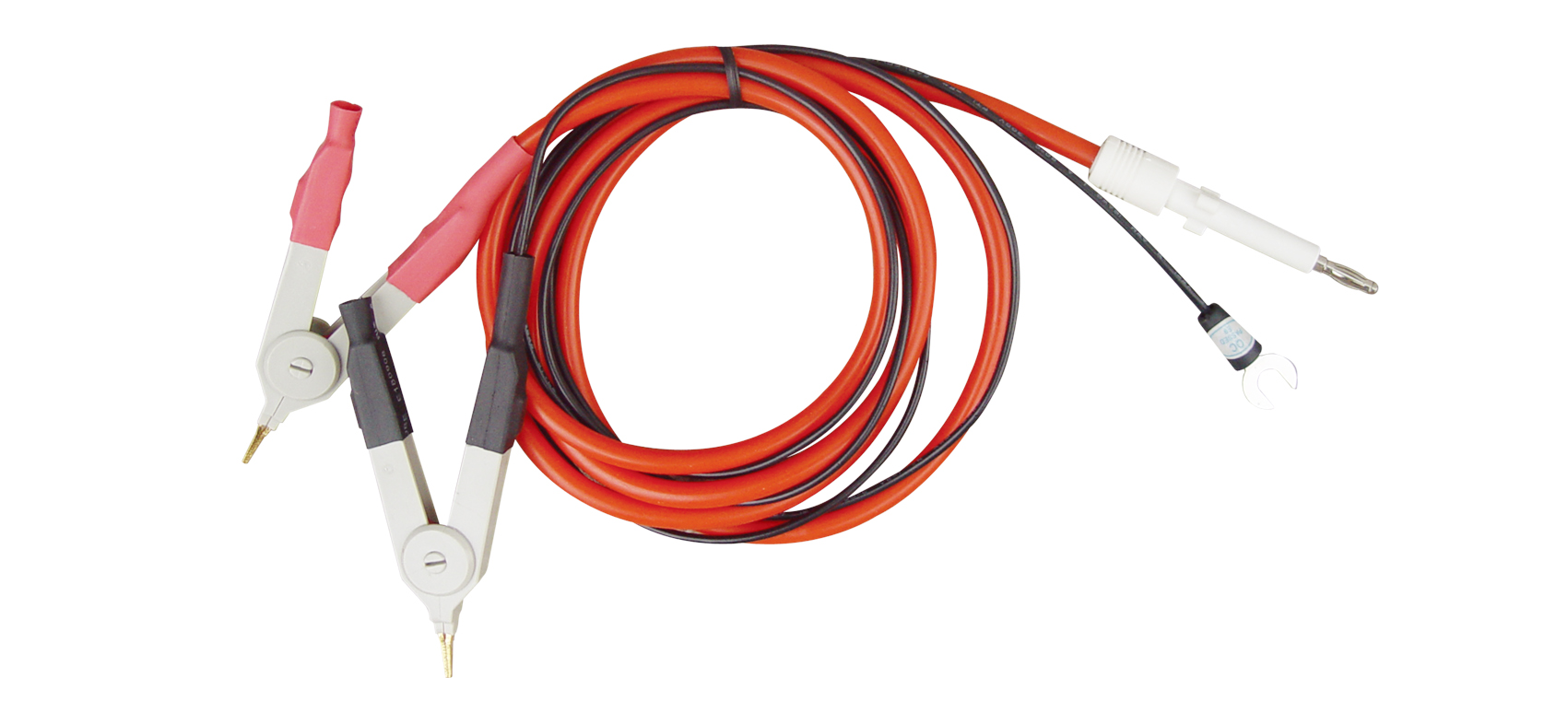

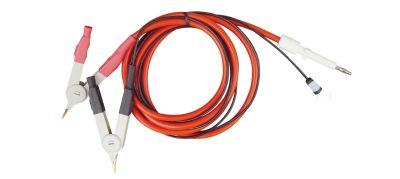

- ST2883-01 test clip leads
- Connection lead
- Manual
Options
- ST10001 GPIB Interface Board
- ST12021 Control Software
Specifications |
|||||
| Model | ST2883S8 | ST2883S5 | |||
| Impulse voltage | 100V-5000V 10V steps |
||||
| Voltage accuracy | ±(5% set value +15V) | ||||
| Readback accuracy | ±(5% actual value +15V) | ||||
| Channels | 8 | 4 | |||
| Inductance test range | ≥10µH | ||||
| Impulse energy | Max.: 0.25 Joule | ||||
| Test speed | 6 times/second (single channel, single step) | ||||
| Pulses applied | Max.: 32 | ||||
| Input Impedance | 5MΩ | ||||
| Display | 800x480 dots, 65k color TFT; Waveform Display Range: 600x256 | ||||
| Waveform Acquisition | Sampling rate: Max. 200Msps, 8 levels adjustable Resolution: 8 Bits Memory Depth: 6k Bytes Average: 1 to 32 |
||||
| Comparison Methods | Comparison with Standard Waveform: • Area Size Comparison • Differential Area Comparison • Corona Discharge Comparison • Differential Phase Comparison |
||||
| Waveform Measurement | Voltage/Frequency/Time | ||||
| Trigger Mode | Manual/External/Bus/Internal | ||||
| Detection Output | Pass/Fail display/LED/ Alarm | ||||
| Measurement Statistics | Statistics for measurement results | ||||
| Memory | 20 groups of standard waveform data and instrument setup can be stored in internal non-volatile memory. USB flash memory can be used as external memory. |
||||
| Interface | Handler, RS232C, USB Device, USB Host, LAN | ||||
Power supply |
|||||
| Power supply | 220V ±10% 50Hz/60Hz ±5% | ||||
| Power consumption | ≤200VA | ||||
General conditions |
|||||
| Working environment | Temperature | 0°C - 40°C | |||
| Safety and electromagnetic compatibility | IEC61010-1:2001,IEC61326-2-1:2005 | ||||
