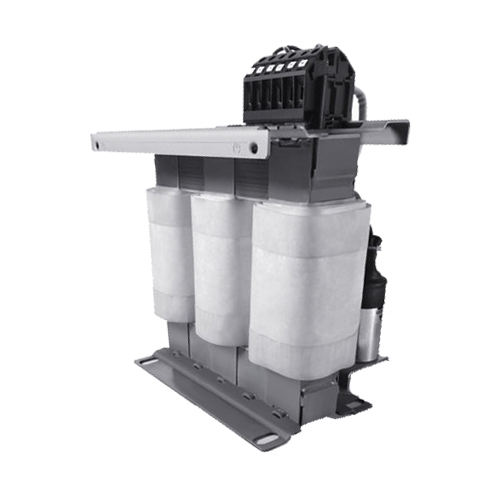

Sine filter SFB 400/23,5
Product number:
62716
EAN:
4260409227231
€729.90*
Only 3 left in stock
Details
Fachberatung unter
+49 421 277 9999
+49 421 277 9999
Print
Description
Product information "Sine filter SFB 400/23,5"
Highlights
- Prevention of overvoltages on the motor
- Long cable lenghts possible
- Reduction in motor noise
- Reduction in line-borne and field-borne emitted interference
- Reduction in motor losses
- Very good corrosion protection and low noise thanks to vacuum impregnation
Anwendung
- Sine filter for the suppression of differential mode interference
Operating data
- Rated voltage: 3 x 400 Vac
- Voltage range: 0 - 520 Vac
- Voltage drop: 8% @ 400
- Rated current: 23.5A
- for motor rated output approx. 11kW
- Rated frequency: 0 - 150 Hz
- Switching frequency: 4 - 8 kHz
Approvals
- Approvals: cURus
- DIN EN 61558‑2‑20
- IEC 61558‑2‑20
- UL 508
- CSA 22.2 No. 14‑9195
Enviroment
- Ambient temperature max.: +40 °C
Safety and protection
- Type: offen
- Insulation class: H
- Protection index: IP 00
- Safety class (prepared): I
- Test voltage: 3000 Vac, 50Hz
Terminal and mounting
- Terminals phase: Screw clamp, 16 mm²
- Terminals PE: Bolt, M6
- Fixing method: Fixing rail
- Fixing screws: M6
- Weight: 14,5 kg
Measures
Dimensions in mm
