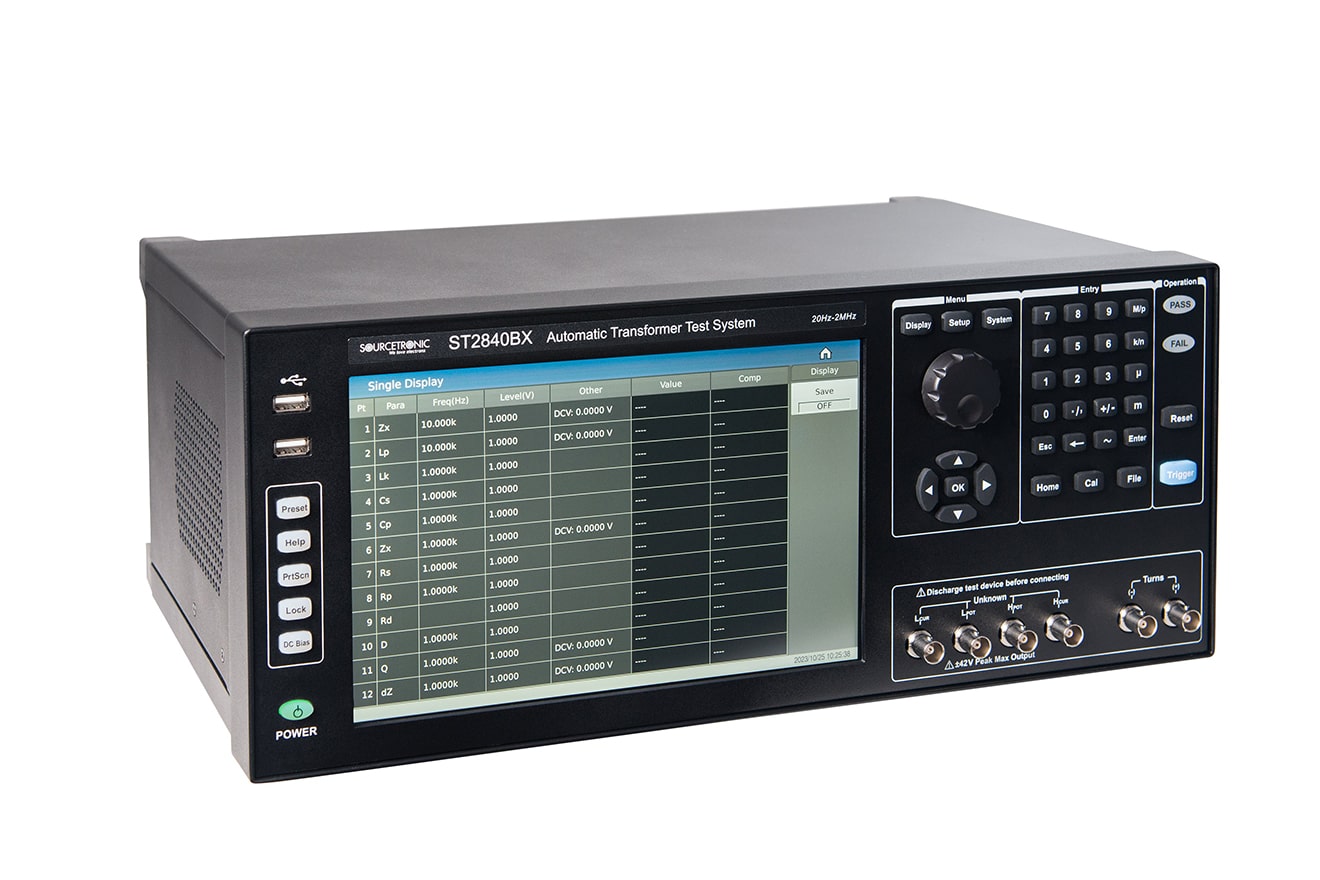

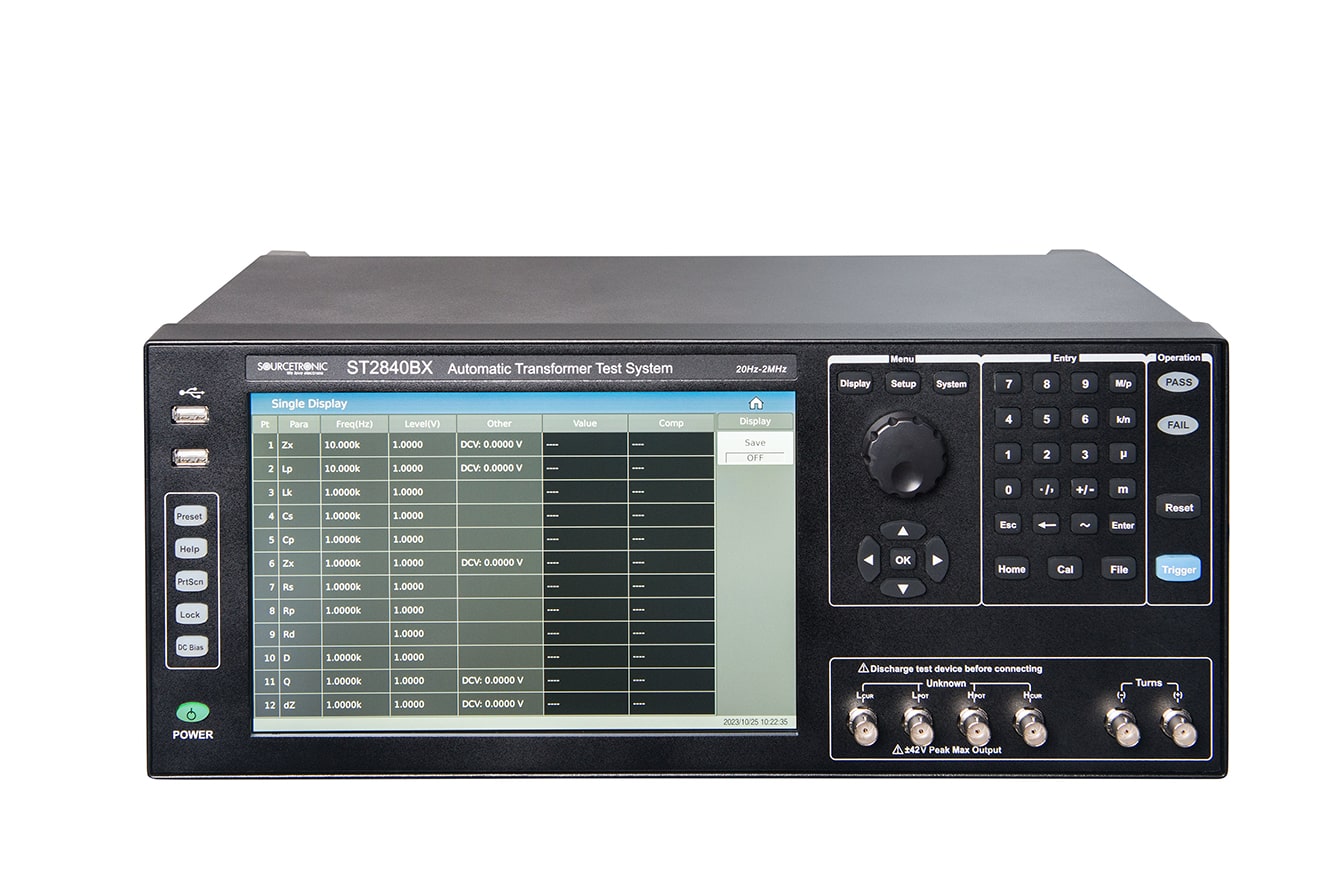

Transformatorentester ST2840BX

Name: Transformatorentester ST2840BX
SKU: 64352
Availability: InStock

Produktnummer: 64352

EAN: 4260689523689

Preis auf Anfrage

Preise exkl. MwSt. zzgl. Versand

Nur noch 1 auf Lager

Anfrage stellen

Details

Fachberatung unter
+49 421 277 9999

Drucken

Beschreibung

Produktinformationen "Transformatorentester ST2840BX"

Highlights

Frequenz: 20Hz - 2MHz
Genauigkeit: 0,01%
Display:

10,1" kapazitiver Touchscreen
Auflösung: 1280×RGB×800

Bias-Spannung ist eingebaut ±40V/±100mA/2A
Schnittstellen: LAN, USB, RS232C, RS485, Handler, externe DC-BIAS-Steuerung
Optional LCR-Funktion

Technische Daten

Testgeschwindigkeit bis zu 1800 mal/s (>10kHz), ohne Relaisaktionszeit
Testpegel bis zu 20Vrms
Die Bias-Spannung ist eingebaut ±40V/±100mA/2A
Industriefreundliche Benutzerfreundlichkeit: Linux-Bodenschicht, integrierte Hilfedatei
10,1 Zoll 1280×800 kapazitiver Touchscreen
Grafische Seite zur Einstellung der Pin-Zuordnung, so dass die Verkabelung kein Problem mehr darstellt
Lk-Einstellung erfordert keine Eingabe des Streuinduktivitäts-Pins, was intuitiver ist
Erweiterte Gleichgewichtsabtastfunktion, von 5 Punkten auf 10 Punkte
Bereichsumschaltung mit elektronischem Schalter, schnelle Geschwindigkeit, lange Lebensdauer, kein Rauschen
Optional: LCR-Funktion
Rund 100M Speicherplatz für Einstellungsdateien im Gerät und große Speicherkapazität für Einstellungsdateien auf der U-Disk
Der Host-Computer unterstützt die Konvertierung von Dateiformaten früherer Modelle, um Kompatibilität zu gewährleisten

Anwendungen

Schalttransformator-Scan-Test, umfassende Analyse der Eigenschaften
Netzwerktransformator-Abtastprüfung, umfassende Kennlinienanalyse
Diskrete passive Komponenten (L, R, C), mehrkanalige Abtastprüfung
Relaisantriebsleitungspaket, Durchgangswiderstand Mehrkanal-Abtasttest
Mehrkanaliger DC-Widerstand DCR-Abtasttest
Umfassende Testanalyse von mehreren passiven Komponenten im Impedanz Netzwerk

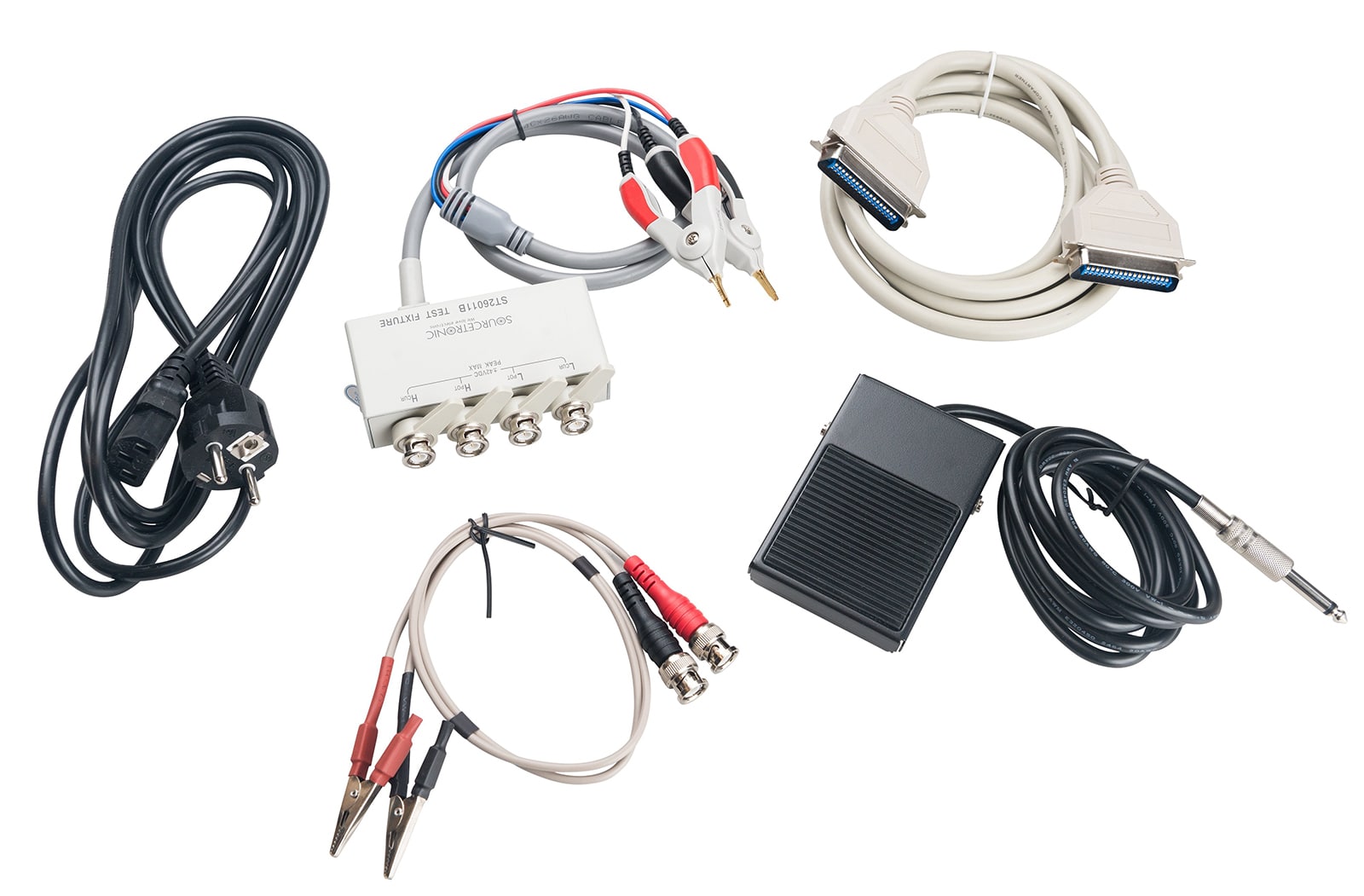

Lieferumfang

Kelvin-Messleitung ST26011BS
Verbindungskabel ST26058A
Prüfleitung ST26004B
Manueller Transformator ST1806B
Fußschalter ST1801-001

Downloads

EN - ST2840 User Manual (17.53 MB)

Technische Daten

Model		ST2840AX	ST2840BX	ST2840NX
Display	Display	10.1" Captive Touch Screen
	Ratio	16:09
	Resolution	1280×RGB×800
Test PIN		20PIN(By TH1806)		48PIN(Can extend to 288PIN)
Frequency	Range	20Hz-500kHz	20Hz-2MHz	20Hz-500kHz
	Accuracy	0.01%
	Resolution	0.1mHz (20.0000Hz-99.9999Hz)
		1mHz (100.000Hz-999.999Hz)
		10mHz (1.00000kHz-9.99999kHz)
		100mHz (10.0000kHz-99.9999kHz)
		1Hz (100.000kHz-999.999kHz )
		10Hz (1.00000MHz-2.00000MHz)
AC test signal mode	Rated value (ALC OFF)	Set the voltage as the Hcur voltage when the test terminal is open
		Set the current to be the current flowing from Hcur when the test terminal is short-circuited
	Constant value (ALC ON)	Keep the voltage on the DUT the same as the set value
		Keep the current on the DUT the same as the set value
Test Level	AC Voltage	5mVrms-20Vrms	F<=1MHz 5mVrms-20Vrms	5mVrms-20Vrms
			F>1MHz 5mVrms-15Vrms
	Accuracy	±(10%×the set value+2mV)(AC<=2Vrms)
		±(10%×the set value+5mV)(AC＞2Vrms)
	Resolution	1mVrms (5mVrms-0.2Vrms)
		1mVrms (0.2Vrms-0.5Vrms)
		1mVrms (0.5Vrms-1Vrms)
		10mVrms (1Vrms-2Vrms)
		10mVrms (2Vrms-5Vrms)
		10mVrms (5Vrms-10Vrms)
		10mVrms (10Vrms-20Vrms)
	AC Current	50μArms-100mArms
	Resolution(100Ω Internal Resistance)	10μArms (50μArms-2mArms)
		10μArms (2mArms-5mArms)
		10μArms (5mArms-10mArms)
		100μArms (10mArms-20mArms)
		100μArms (20mArms-50mArms)
		100μArms (50mArms-100mArms)
RDC Test	Voltage	100mV-20V
	Resolution	1mV (0V-1V)
		10mV (1V-20V)
	Current	0mA-100mA
	Resolution	10μA (0mA-10mA)
		100μA (10mA-100mA)
DC Bias *	Voltage	0V-±40V
	Accuracy	AC<=2V 1%×the set voltage+5mV
		AC>2V 2%×the set voltage+8mV
	Resolution	1mV (0V - ±1V)
		10mV (±1V - ±40V)
	Current	0mA-±100mA
	Resolution	10μA (0mA-10mA)
		100μA (10mA-100mA)
Built-in current source	Current	0mA-2A
	Accuracy	I>5mA ±(2%×the set value+2mA)
	Resolution	1mA
Output impedance		30Ω, ±4%@1kHz
		100Ω, ±2%@1kHz
LCR Function
Test Parameter	Method	Arbitrary selection of four parameters
	AC	Cp/Cs, Lp/Ls, Rp/Rs, \|Z\|, \|Y\|, R, X, G, B, θ, D, Q, VAC, IAC
	DC	RDC, VDC, IDC
Test Terminal Configuration		Four Terminal Pair
Test Cable Length		0m
Computation		The absolute deviation from the nominal value Δ, the percentage deviation from the nominal value Δ%
Equivalent Way		Series, Parallel
Calibration Function		OPEN, SHORT, LOAD
Average Times		1-255
Range Selection		AUTO, HOLD
Range Configuration	LCR	100mΩ, 1Ω, 10Ω, 20Ω, 50Ω, 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ
	RDC	1Ω, 10Ω, 20Ω, 50Ω, 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ
Test Speed (ms)		Fast+: 1ms. Fast: 3.3ms. Middle: 90ms.
		Slow: 220ms
Highest accuracy		0.05% Please refer to the manuals for the details
Measurement display range
Cs, Cp		0.00001pF-9.99999F
Ls, Lp		0.00001μH-99.9999kH
D		0.00001-9.99999
Q		0.00001-99999.9
R, Rs, Rp, X, Z, RDC		0.001mΩ-99.9999MΩ
G, B, Y		0.00001μs-99.9999S
VDC		±0V-±999.999V
IDC		±0A-±999.999A
θr		-6.28318
θd		-179.999°-179.999°
Δ%		±(0.000%-999.9%)
TurnsRatio		1：0.001—1000：1
Transformer Test
Test Parameter		Cs/Cp, Ls/Lp, DCR, Zx, Rs/Rp, D, Q, dZ, , Lk, Phase, Balance Turns-Ratio, Ns:Np=U2/U1, Np:Ns=U1/U2 Turns: Ns=Np×U2/U1, Np=Ns×U1/U2
Test Mode	Continous	In the single trigger mode, manually trigger once, and once test all the test parameters.
	Step	In the single trigger mode, manually trigger once to measure one parameter. Trigger again to measure the next parameter.
Test Speed (ms)	Fast	Fast: 3.3ms, Fast+ 0.56ms(>10kHz)
	Middle	Middle: 90ms
	Slow	Slow: 220ms
Bias Resource		See *
Average Times		Each test parameter can set different average times, the average times is 0-255
Time Delay		Each test parameter can set a different delay time
Transformer Scanning
Built in Scanning Board		No		One Board as standard. Could extend to six boards. ((24×2)PIN per board)
Transformer Handler	PIN Definition	NS1-NS30, GOOD, NG, TEST, TRIGGER, RESET		NS1-NS9, GOOD, NG, TEST, TRIGGER, RESET
	Output characteristics	Optocoupler isolation, ULN2003 drive enhancement, collector output
Model		Direct reading, percentage
Test Range		Auto, Hold
Bias Resource		See *
External scanning box		compatible to TH1901 series, TH1831 scanning box, TH1806 series
Number of windings	Primary	60
	Secondary	9
Average Times		Each test parameter can set different average times, the average times is 0-255
Time Delay		Each test parameter can set a different delay time
Test Speed (ms)	Fast	Fast: 3.3ms(>=1kHz). Fast+ : 0.56ms(>=10kHz) (Exclude the time for the realy action)
	Middle	Middle: 90ms
	Slow	Slow: 220ms
Test lead interface		25*2pin FRC socket

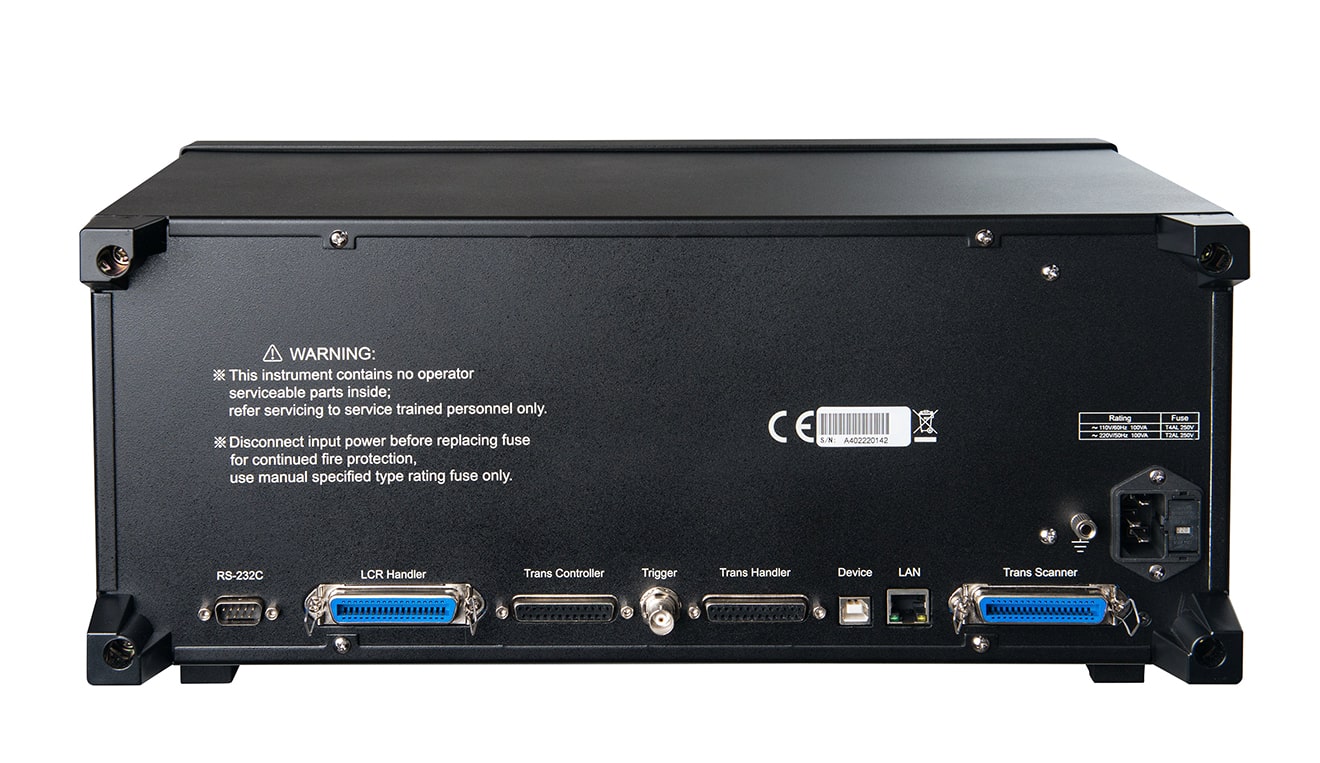

Other Functions and specifications
Storage	Internal	About 100M non-volatile memory test setting file
	U Disk	Test setting file, screenshot graph, record file
Keyboard Lock		The front panel keys can be locked
Interface	USB HOST	2 USB HOST ports. Mouse and keyboard could work at the same time. Only one U disk can be used at the same time.
	USB DEVICE	Universal serial bus socket, small type B (4 contact positions); compatible with USB TMC-USB488 and USB2.0, the female connector is used to connect an external controller.
	LAN	10/100M Ethernet adaptive, 8 Pin
	HANDLER	Used for Bin signal output
	External DC BIAS Control	Support TH1778A (do not support transformer scanning)
	RS232C	Standard 9-pin, cross
	RS485	Can accept modification or connect to RS232 to RS485 adaptor
Power-on Warm-up Time		60 Minutes
Output Voltage		100-120VAC/198-242VAC Optional, 47-63Hz
Power Consumption		More than 130VA
Size (WxHxD) mm		430mm(W)x177mm(H)x265mm(D)		430mm(W)x177mm(H)x405mm(D)
Weight (kg)		11kg		17kg
